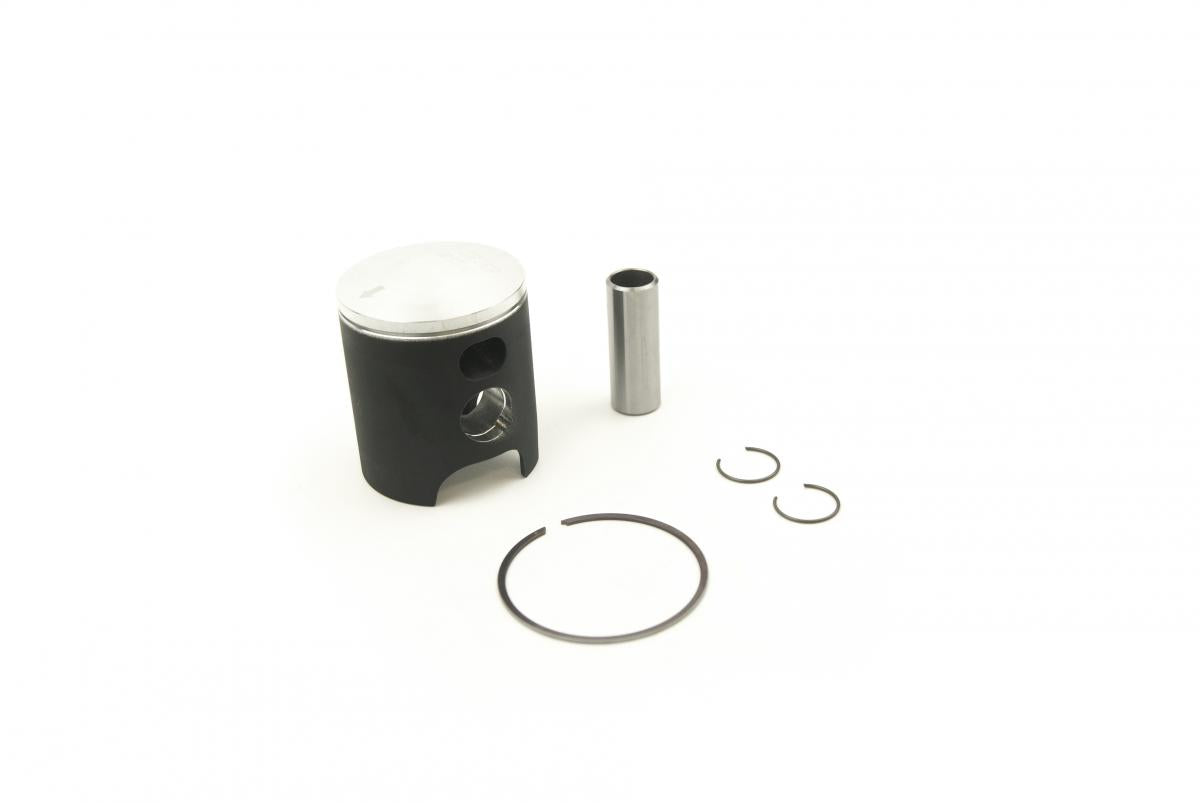

WOSSNER PISTON KIT 82-83 YZ100 50.50, FORGED WOSSNER 8318D050

Piston kit 50mm Bore 50.45 Wossner 8318D050 (+0.50MM)

YAMAHA
YZ100 1982 - 1983,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4771.050.WO (oro2u.com)

Wossner Piston Kit 8318D050

Make: Yamaha

Model: YZ100

Year: 1982-1983

Piston size: 50.45mm

Oversize: +0.50mm

Clearance: 0,05mm

Stroke: 50,00mm

Compression Height: 29,80mm

Theoretical Weight: 109,70g

Ring set: RSB5050

Clips: CW15

Wristpins: WP067
