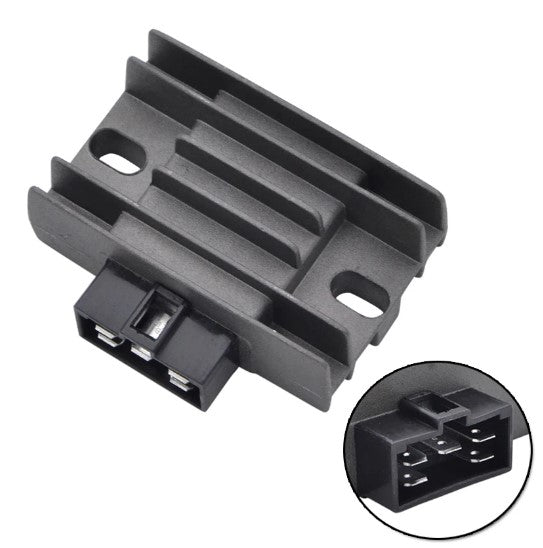

VOLTAGE REGULATOR YAMAHA XT125R XTZ125E YBR125 2D0-H1960-00-00

Compatible Models:

• Yamaha XT125R 2007-2008
• Yamaha XT125X 2007-2008
• Yamaha XTZ125E 2013-2017
• Yamaha YB125 2013-2015
• Yamaha YBR125E 2006-2013
• Yamaha YBR125EGS 2008-2016
• Yamaha YBR125 YBR125ED 2005-2006
• Yamaha YBR125 YBR125ESD 2008/2011

Technical Specifications:

• Voltage: 12 [V]
• Current: 20 [A]
• Input Type: Single-Phase (MONOFASICO)
• Technology: Silicon Controlled Rectifier (SCR)
• Output Type: Constant Current (CC)
• Height: 28 [mm]
• Width: 47 [mm]
• Length: 76 [mm]
• Pitch: 60 [mm]
• With Sensor: Yes

Compatible with the following motorcycle models:

• Brand: Euromot, Model: Lucky, Version: HJ-2, Displacement: 110
• Brand: Gilera, Model: QMT 10D Super, Displacement: 125
• Brand: Gilera, Model: QMT 10A Speedy, Displacement: 125
• Brand: Guerrero, Model: GMX, Displacement: 150
• Brand: Guerrero, Model: Queen, Displacement: 125
• Brand: IMSA, Model: Evo, Displacement: 110 (from 2010)
• Brand: Jawa, Model: Supernova, Displacement: 150
• Brand: Jianshe, Model: JS 6B, Displacement: 125
• Brand: Jincheng, Model: JC 125, Displacement: 125
• Brand: Konisa, Model: Vitality, Displacement: KE 250
• Brand: Malaguti, Model: X3M Enduro, Displacement: 125 (from 2007 to 2008), OEM: 02603800
• Brand: Malaguti, Model: X3M Motard, Displacement: 125 (from 2007 to 2008), OEM: 02603800
• Brand: Mondial, Model: LD Pista, Displacement: 110
• Brand: Yamaha, Model: Brillant Riding, Displacement: 125
• Brand: Yamaha, Model: FZ 16, Displacement: 160 (up to 2011)
• Brand: Yamaha, Model: XTZ E, Displacement: 125 (2013)
• Brand: Yamaha, Model: YBR E / ED / EGS, Displacement: 125 (from 2006 to 2013)
• Brand: Yamaha, Model: YS Fazer, Displacement: 250 (up to 2009)
• Brand: Zanella, Model: Due Luxury, Displacement: 110 (from 2010)

Additional Information:

• This product meets or exceeds OEM quality.
• It is a direct OEM replacement.
• All products are factory-tested for 100% reliability at the point of sale.
• Please note that there are no returns on electrical parts.
• Cross Reference Numbers ONLY: This aftermarket rectifier regulator is compatible with the following European model scooters, dirt bikes, and street bikes with the respective OEM part numbers: 5VL-H1960-00, 2D0-H1960-00-00, 1S4-H1960-00-00.
• It is a direct replacement for the OEM part numbers: 5VL-H1960-00-00 / 1S4-H1960-00-00 / 2D0-H1960-00-00.

YAMAHA - Dirt:

• XT125R 2007-2008
• XT125X 2007-2008
• XTZ125E 2013

YAMAHA - Road:

• Euromot Lucky HJ-2 110cc
• Gilera QMT 10A Speedy 125cc
• Gilera QMT 10D Super 125cc
• Guerrero GMX 150cc
• Guerrero Queen 125cc
• IMSA Evo 110cc (2010)
• Jawa Supernova 150cc
• Jianshe JS 6B 125cc
• Jincheng JC 125cc
• Konisa Vitality KE 250cc
• Mondial LD Pista 110cc
• Yamaha Brillant Riding 125cc
• Yamaha FZ 16 160cc (2011)
• Yamaha XTZ E 125cc (2013)
• Yamaha YBR E / ED / EGS 125cc (2006-2013)
• Yamaha YS Fazer 250cc (2009)
• Zanella Due Luxury 110cc (2010)

• 1 Euromot Scooter, Lucky 110 HJ-2 All Years
• 1 Gilera Scooter, QMT 125 10A Speedy All Years
• 1 Gilera Scooter, QMT 125 10D Super All Years
• 1 Guerrero Scooter, Queen 125 All Years
• 1 Guerrero Scooter, GMX 150 All Years
• 1 IMSA Scooter, Evo 110 Years 2010 & Up
• 1 Jawa Scooter, Supernova 150 All years
• 1 Jianshe Scooter, JS 125 6B All Years
• 1 Jincheng Scooter, JC 125 All Years
• 1 Konisa Scooter, Vitality 250 KE All Years
• 1 Mondial Scooter, LD110 Pista All Years
• 2007 Yamaha Dirt Bike, XT125R European Models
• 2008 Yamaha Dirt Bike, XT125R European Models
• 2007 Yamaha Dirt Bike, XT125X European Models
• 2008 Yamaha Dirt Bike, XT125X European Models
• 2013 Yamaha Dirt Bike, XTZ125E European Model
• 2013 Yamaha Street Bike, YB125 European Models
• 2014 Yamaha Street Bike, YB125 European Models
• 2015 Yamaha Street Bike, YB125 European Models
• 2016 Yamaha Street Bike, YB125 European Models
• 2017 Yamaha Street Bike, YB125 European Models
• 2006 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2007 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2008 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2009 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2010 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2011 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2012 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2013 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2014 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2015 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2016 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2017 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2018 Yamaha Street Bike, YBR125 E/D/GS/EGS European Models
• 2008 Yamaha Street Bike, FZ16 Byson European Model
• 2009 Yamaha Street Bike, FZ16 Byson European Model
• 2010 Yamaha Street Bike, FZ16 Byson European Model
• 2011 Yamaha Street Bike, FZ16 Byson European Model
