Kibblewhite

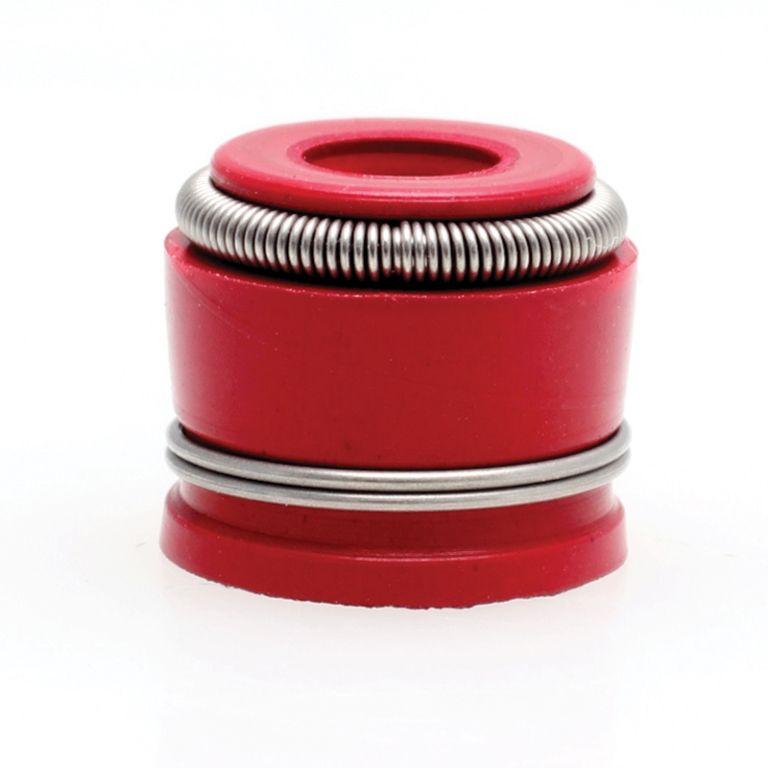

VALVE STEM SEAL 5.0mm EACH, KIBBLEWHITE 71015-100, Kawasaki® ZX-10R(TM) 1988-1990 Kawasaki® ZX-11(TM)/ ZRX(TM) 1100/ 1200 1999-'05 Kawasaki® ZX-12R(TM)

VALVE STEM SEAL 5.0mm EACH, KIBBLEWHITE 71015-100, Kawasaki® ZX-10R(TM) 1988-1990 Kawasaki® ZX-11(TM)/ ZRX(TM) 1100/ 1200 1999-'05 Kawasaki® ZX-12R(TM)

£6.00 GBP
£6.00 GBP
Sale Sold out
Taxes included.

Seal, Red Viton, 5.0mm Stem x 0.340" Guide Seal Detail,

Various Applications


Valve Stem Seal, Universal, 5.0mm Stem X Guide Dia 8.26mm,

8.51mm Length, Seal OD.10.30mm

HONDA
XR50 2000-03,
CRF450R 2002-08 (Exhaust Only),
CRF450R 2009-13,
CRF450X 2005-13 (Exhaust Only),
Kawasaki:
KLX400 2001-06,
Kawasaki ATV:
KFX400 2001-06,

Kawasaki® ZX-10R 1988-1990
Kawasaki® ZX-11/ ZRX™ 1100/ 1200 1999-'05
Kawasaki® ZX-12R 2000-2005
Kawasaki® ZX-14 2006-2011
Kawasaki® PWC 2006-2019
Suzuki® GS 750 E/ ES/ L/ T 1980-1986 (5mm Conv.)
Suzuki® GSX-R 750 1980-1992
Suzuki® GSX-R 1100 1986-1990
Suzuki® GSX-R 1100 1991-1992
Suzuki® GS 1150 1984-1986 (5mm Conv.)
Suzuki® GSX-1300R
HAYABUSA 1999-2019

KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.

Part No. 65-333.500.EACH (oro2u.com) EACH

Material Red Viton®
Reference See Figure 1
Quantity Pkg. of 100
Stem Diameter 5.0mm
Overall Length 0.350"
Seal O.D. 0.405"
A 0.340”±0.005”
B 0.303"
C 0.125"
D 0.230"
OEM REF. P/N 09289-05011
Note Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit


S/SEED FROM 65-3707 TO 63-333.500.EACH
