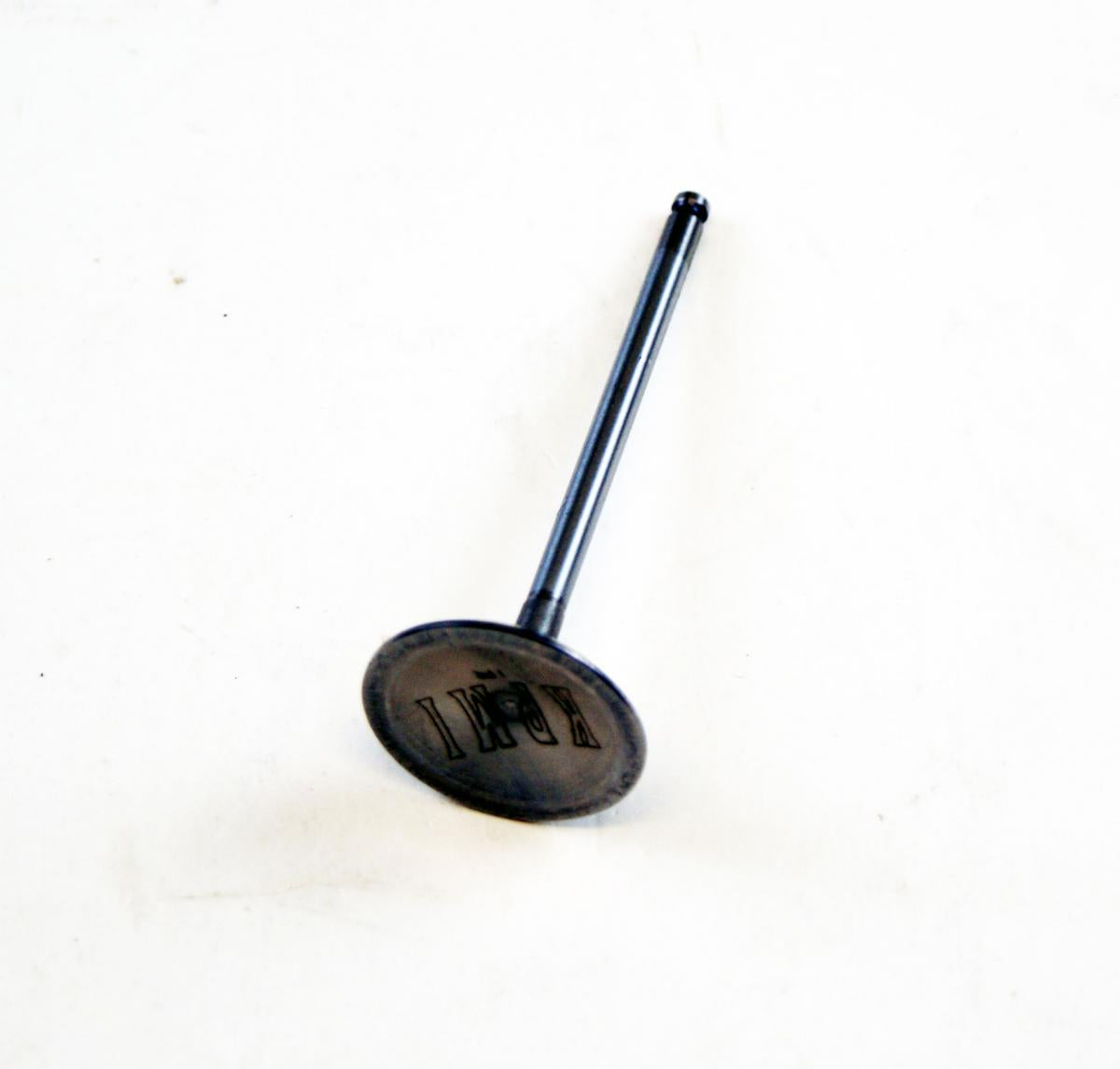

Valve, White Diamond Stainless, STD IN,

Suzuki RM-Z250 2007-2017

Suzuki RMZ250 RM-Z250 2007-2012,

Kibblewhite 60-60512H White Diamond Valves for INTAKE

Head Diameter 31.00mm / 1.220 inc.
Stem Diameter 4.50mm / 0.1765 inc.
Tulip 15 degrees,
OL 80.65mm / 3.175 inc.
Standard

NOTE: Kibblewhite advise to use Kibblewhite valve spring Kit’s with Kibblewhite valves. Use Part no 65-718

KPMI ® has several Suzuki ® valve designs whereas we have selected a proprietary material and heat treatment process that enhances the durability of the valve face to retard valve face recession. For several years now, this material and heat treatment process was coupled with the KPMI ® Black Diamondâ„¢ surface treatment. During the heat treatment stage of manufacturing, the Black Diamondâ„¢ coating would come under attack and suffer oxidation and corrosion, leaving a new valve looking used. Although this combination of processes did achieve a superior stainless one piece valve that would prove to have a highly durable valve face, the valve heads had an unaesthetic appearance (see Figure 1 and 2). Recently, the KPMI ® engineering department completed design reviews for all valves with these issues. The solution was to move away from the KPMI ® Black Diamondâ„¢ treatment and introduce the well-recognized and proven KPMI ® White Diamond ® coating and then post process after heat treatment to leave the head of the valve in a beautiful polished stainless finish (see Figure 1 and 2). We hope you are as excited as we are to provide you with these enhanced valve designs that we will be introducing in a superseding fashion over the next few months.

Cross reference numbers.
12911-10H00, Kibblewhite # 60-60512, PSYCHIC XU-09530I, VERTEX 8400021-2 TITANIUM,
2007 RM-Z250 CAMSHAFT - VALVE
2008 RM-Z250 CAMSHAFT - VALVE

Part No. 65-456.KW.WD (oro2u.com) (Off Road Only Ltd.)
