Guide, C630, IN/EX STD,

Suzuki RM-Z450 2005-2006

EXHAUST/INTAKE SUZUKI RM-Z450 05-07,

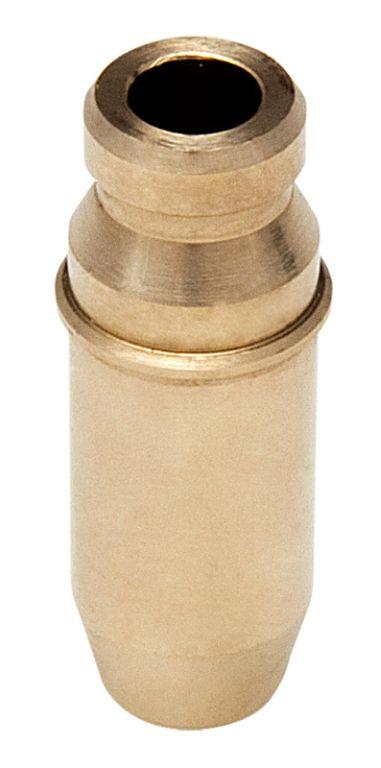

Item # 60-60320, Valve Guides for Suzuki

Exhaust/Intake - G (Std. 0.417") C630 Bronze

Dimensions:
A. 0.375" (9.53mm)
B. 0.410" (10.42mm)
C. 0.580" (14.74mm)
D. 0.800" (20.33mm)
E. 0.460" (11.69mm)
F. 0.1955" (4.96mm)
G. 0.417" (10.60mm)

Please call for oversize Valve Guides.

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Part No. 65-934+000 (oro2u.com) Valve Guides STD.
