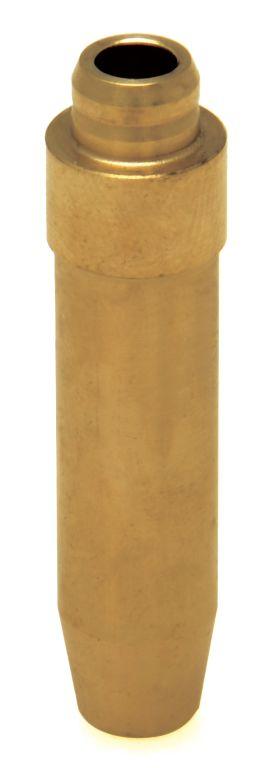

Guide, C630, IN STD, KTM®, 250, 2008-2011

KTM 250 SXF 2008-11

Kibblewhite # 93-96270 STD
Intake - G (Std. 0.3958 inc.) C630 Bronze

Dimensions:
A. 0.200" (5.08mm)
B. 0.475" (12.07mm)
C. 1.020" (25.92mm)
D. 1.335" (33.93mm)
E. 0.433" (11.00mm)
F. 0.1960" (4.98mm)
G. 0.3958" (10.06mm)

Please call for oversize Valve Guides

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
