UNIVERSAL JOINT SUZUKI YAMAHA, BRONCO AT-08509 ATV, UTV

ATV Universal U-Joint Bronco AT-08509

Specifications:

• Size A: 25.00mm / 41.250mm (Refer to the image for exact measurements)

Applications:

1. Front Drive Shaft - Differential Side (Reference 2):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 400 4x4 w/MT (2001)
• 500 4x4 w/AT (2000-2002)
• 500 4x4 w/MT (2000-2001)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2009-2011)
• Prowler 1000 XT (2015-2017)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)

Suzuki:

• LT-A500F Quad Master Auto (2000)

2. Front Drive Shaft - Engine Side (Reference 3):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 250 4x4 (2001-2005)
• 300 4x4 (1998-2005)
• 400 4x4 (1998-2000)
• 400 4x4 w/MT (2001-2002)
• 400 FIS 4x4 w/MT (2002)
• 454 4x4 (1996-1998)
• 500 4x4 (1998-1999)
• 500 4x4 w/AT (2000-2002)
• 500 4x4 w/MT (2000-2001)
• 500 FIS 4x4 w/AT (2002)
• 500 FIS 4x4 w/MT (2002)
• 500 FIS TBX 4x4 (2002-2006)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2009-2011)
• Prowler 1000 XT (2015)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)

Suzuki:

• LT-4WD 250 Quad Runner (1987-1998)
• LT-A500F Quad Master Auto (2000)
• LT-A500X (2009-2014)
• LT-A500XP Power Steering (2011-2013)
• LT-F250F 4WD Quad Runner (1999-2002)
• LT-F300F King Quad (1999-2000)
• LT-F4WDX King Quad 300 (1991-1998)

3. Rear Drive Shaft - Differential Side (Reference 5):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 500 FIS TBX 4x4 (2002)
• 650 4x4 w/AT V2 (2004-2006)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2008-2011)
• Prowler 1000 XT (2015-2017)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)
• Prowler 550 (2009)
• Prowler 650 (2007)
• Prowler 650 XT (2006-2009)

Kawasaki:

• Teryx 750 4x4 (2008-2013)

4. Rear Drive Shaft - Engine Side (Reference 4):

Arctic Cat:

• 1000 LTD Mudpro (2015-2017)
• 1000 TRV / Cruiser (2009-2012)
• 1000 TRV (2013)
• 1000 TRV GT (2012)
• 1000 TRV XT/LTD (2015)
• 1000 XT (2013-2017)
• 1000i GT (2012)
• 1000i LTD EFI Mudpro (2012-2014)
• 650 4x4 w/AT V2 (2004-2006)
• 700 XT (2013-2014)
• Alterra TRV 1000 XT (2017)
• H2 Mudpro (2010-2011)
• H2 Thundercat (2008-2011)
• Prowler 1000 XT (2015-2017)
• Prowler 1000 XTZ (2011-2014)
• Prowler 1000 XTZ H2 (2009-2011)
• Prowler 550 (2009)
• Prowler 650 (2007)
• Prowler 650 XT (2006-2009)

Kawasaki:

• Teryx 750 4x4 (2008-2013)

Suzuki:

• LTA-450 X King Quad (2007-2010)
• LT-A500F Vinson (2002-2007)
• LT-A500X (2015-2017)
• LT-A500XP Power Steering (2016-2017)
• LTA-700 X King Quad (2005-2007)
• LTA-750 X King Quad (2008-2014)
• LTA-750 XP King Quad Power Steering (2011-2017)
• LT-F500F (1998-2000)
• LT-F500F Vinson (2003-2007)

5. Yamaha:

Big Bear:

• 250, 2x4 (2007-2008)
• 350, 4WD FDS (1986)
• 400, 4WD FDS, RDS (2007-2008), 4WD FDS (2006)

Bruin:

• 250, 2x4 (2006)

Grizzly:

• 350, 2x4 (2007-2008)
• 350, 4WD FDS RDS (2007-2008)
• 400, 4WD RDS (2007-2008)
• 450, 4WD FDS, RDS (2007-2008)

Kodiak:

• 400, 4WD RDS (2005-2006), FDS (1998-1999)
• 450, 4WD FDS, RDS (2003-2006)

Rhino:

• 450, 4WD FDS (2006)
• 650, 4WD FDS (2004-2007)
• 700, 4WD FDS (2008-2009)

Features:

• Construction: Made to exacting specifications and interchangeable with OEM parts.
• Quality: Manufactured by SO-9000 facility.
• Durability: High-quality product, offering a durable and affordable alternative to expensive OEM joints.

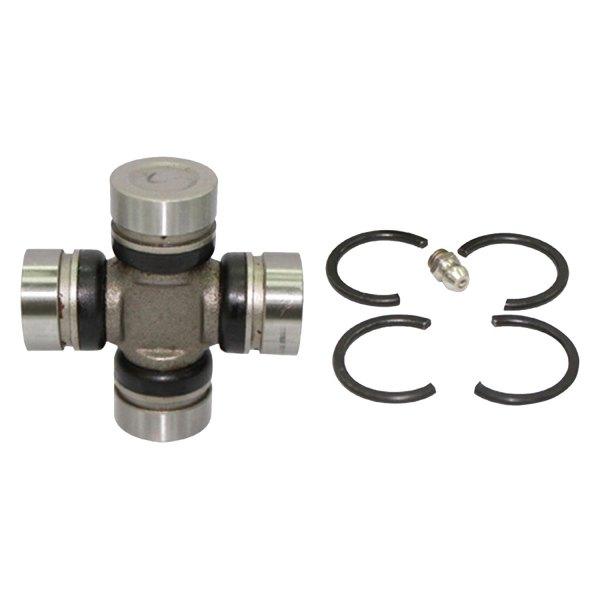

• Components: Includes spider, 4 bearings, circlips, and grease zerk.

Part Number: 17-3315.BR (Available at oro2u.com)

Cross Reference Number:

• ALLBALLS 19-1001
