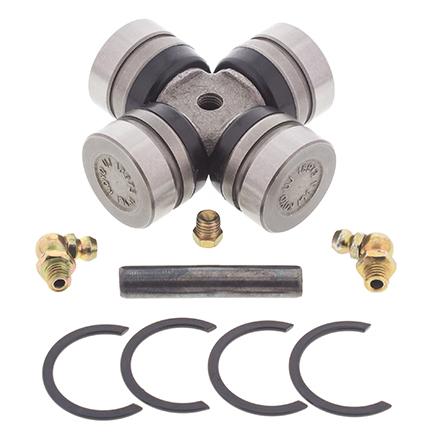

UNIVERSAL JOINT POLARIS, ALLBALLS 19-1012 ATV502

U-Joint, Rear Axle, Inner KIT. ALLBALLS 19-1012

Polaris
Ranger 4x4 500 99-04, Ranger 6x6 500 04, Ranger Series 10 4x4 & 6x6 07, U-Joint, Rear Axle, Outer (Ref 7) Polaris Diesel 455 4x4 Built After 9/98 99, Diesel 455 4x4 Built Before 9/98 99, Ranger 4x4 500 99-04, Ranger 6x6 500 04, Ranger Series 10 4x4 & 6x6 07, Sportsman 335 99-00, Sportsman 500 4x4 96-98, Worker 335 99, Xplorer 500 97

Location 6. Rear Axle Inner [SEE KEY IMAGE]

27mm diam. / 47.2mm wide with inside snap rings.

• U-Joints are cold forged from SCM-415 steel
• Precision ground journals are case hardened to HRC58-61
• Pre-greased with hi-temp Lithium Complex 3 grease
• Zerk and grease channels in bearing cup evenly distribute grease
• Includes cap plug to eliminate grease zerk for low clearance applications
• Honda yoke assemblies have upgraded cross diameters from 17mm to 19mm and feature stainless steel clamps and hi-quality neoprene rubber boots for long life and abrasion resistance

Part No. 17-3312.AB (oro2u.com)

Cross reference numbers.
MOTO MASTER ATV502 EPI WE100995 ALLBALLS 19-1012, BRONCO AT-08502

Rear axle outer only on the following models:
Polaris
Sportsman 335 4x4 99-00
Diesel 455 4x4 99
Sportsman 500 96
Sportsman 500 97
Sportsman 500 4x4 98
Xplorer 500 97

Rear axle inner and outer only on the following models:
Polaris
Ranger 4x4 500 04
Ranger 6x6 500 04
