TOP END PISTON KIT 84-86 YAMAHA IT 200 67.5mm 1.5mm OVER VINTCO KTY34-1.5

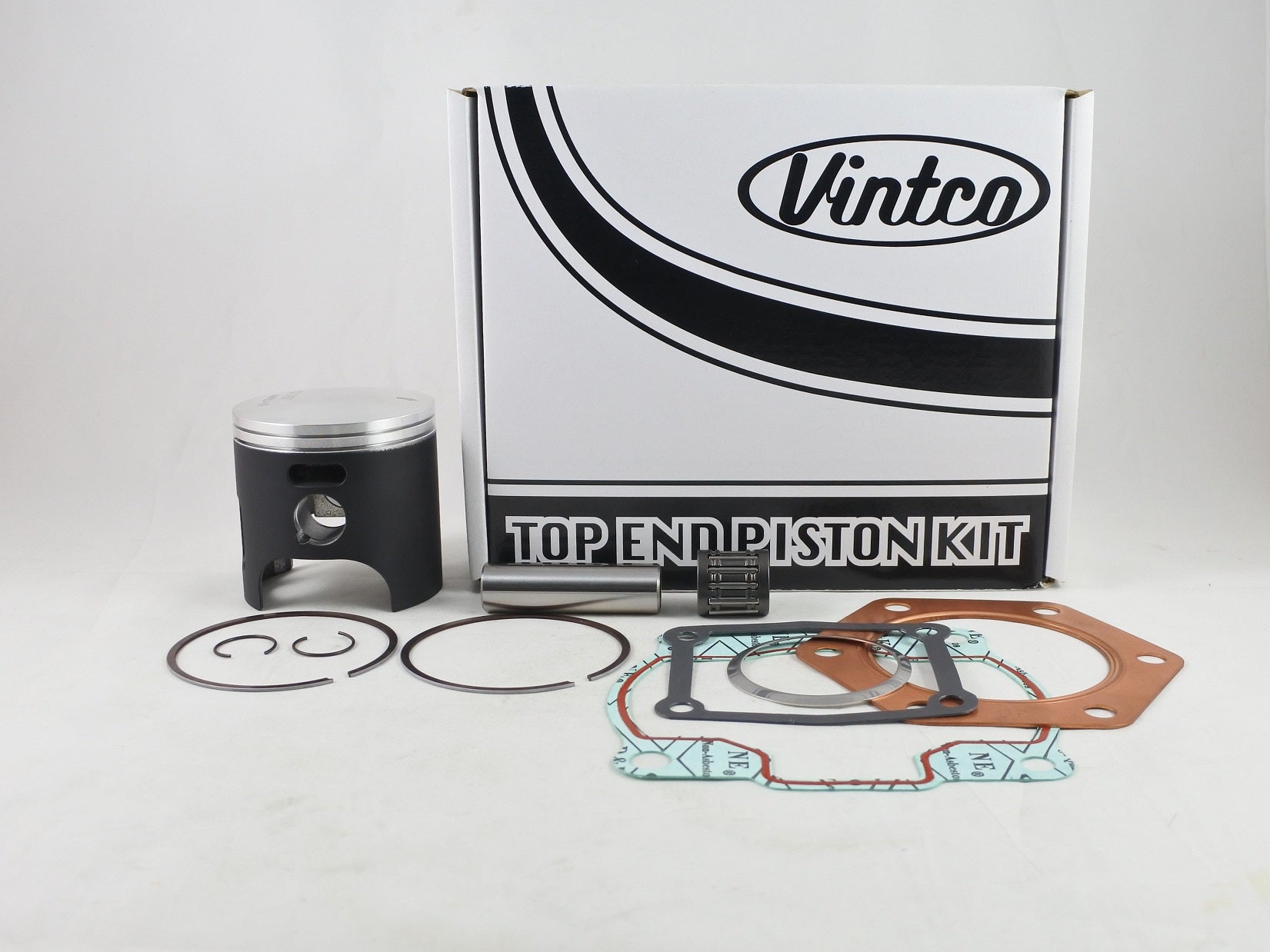

This VintCo top end piston kit is designed for 1984-1986 Yamaha IT200 models and provides the main components required for a top end rebuild. The kit includes a forged piston manufactured in Germany with an MOS2 coating for break-in, cylinder head, cylinder base, intake and exhaust pipe gaskets, and a wrist pin bearing. Kit pricing reflects a 10% saving compared with purchasing the items individually.

Features

• Complete top end rebuild kit for Yamaha IT200 models
• Forged piston manufactured in Germany
• MOS2-coated piston for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY34-1.5
• Piston size: 67.5 mm
• Oversize: 1.5 mm over
• Piston diameter: 67.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 43G-11181-01-00
• Cylinder Base Gasket: 43G-11351-10-00
• Intake Gasket: 39W-13621-01-00
• Exhaust Pipe Gasket: 3R6-14613-01-00

Vehicle Fitments

• 1984 Yamaha IT200
• 1985 Yamaha IT200
• 1986 Yamaha IT200
