TOP END PISTON KIT 83-83 YAMAHA IT 250 68mm STANDARD VINTCO KTY45-00

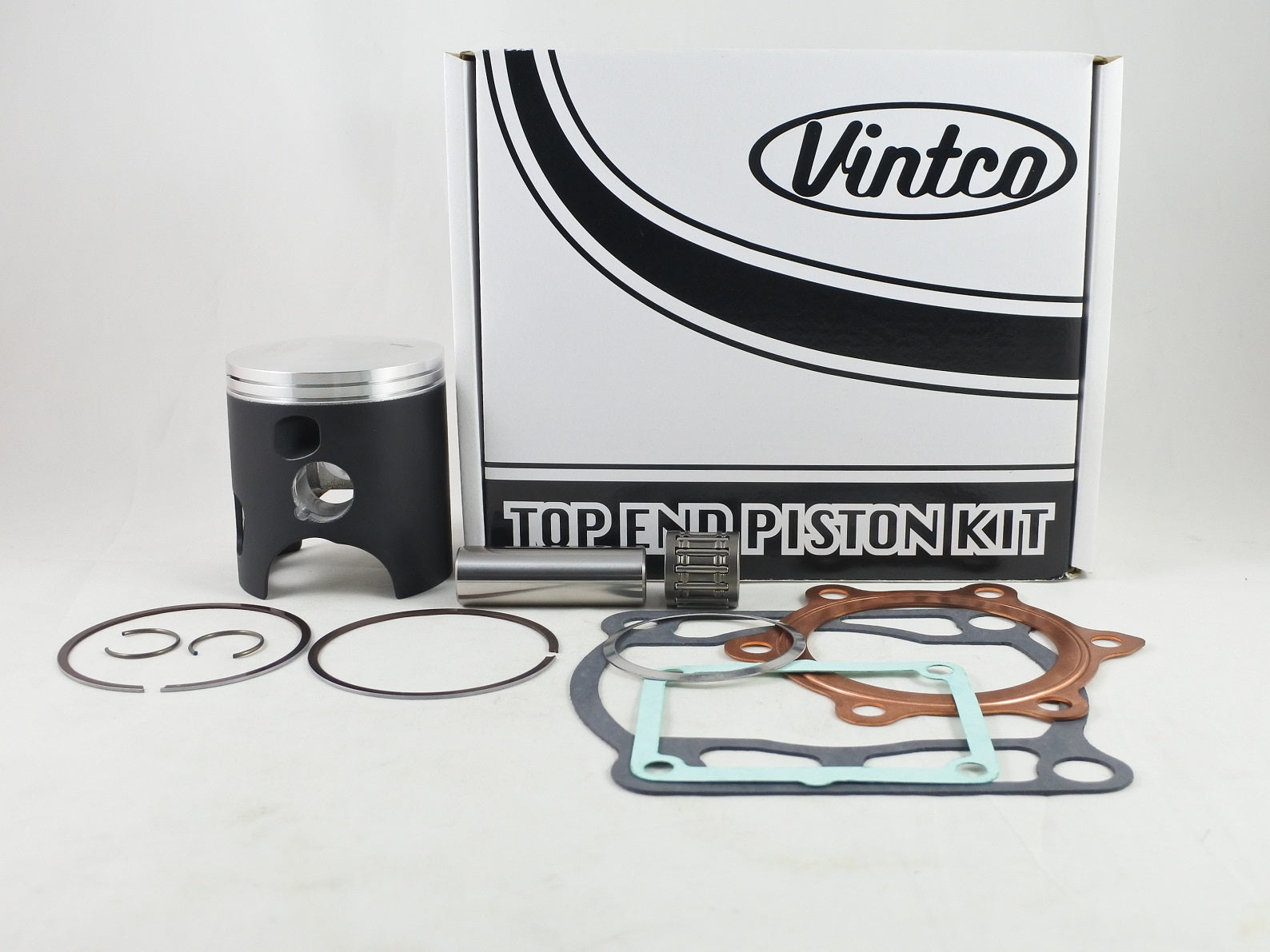

VintCo KTY45-00 is a standard 68 mm top end piston kit for the 1983 Yamaha IT250, supplying the principal components required for top end service in one package. The kit includes a forged piston manufactured in Germany, a wrist pin bearing, and matching cylinder head, cylinder base, intake and exhaust pipe gaskets; kit pricing is set at 10% less than the total cost of the individual items.

Features

• Top end piston kit for top end service
• Includes forged piston
• Includes wrist pin bearing
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Kit pricing includes a 10% reduction compared with the individual items

Specifications

• VintCo Part Number: KTY45-00
• Nominal piston size: 68 mm standard
• Piston size: 67.94 mm
• Piston clearance: 0.06 mm
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 25Y-11181-00-00
• Cylinder base gasket: 3R4-11351-01-00
• Intake gasket: 80L-13621-01-00
• Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

• 1983 Yamaha IT250
