TOP END PISTON KIT 83-83 YAMAHA IT 250 68.5mm 0.5mm OVER VINTCO KTY45-0.5

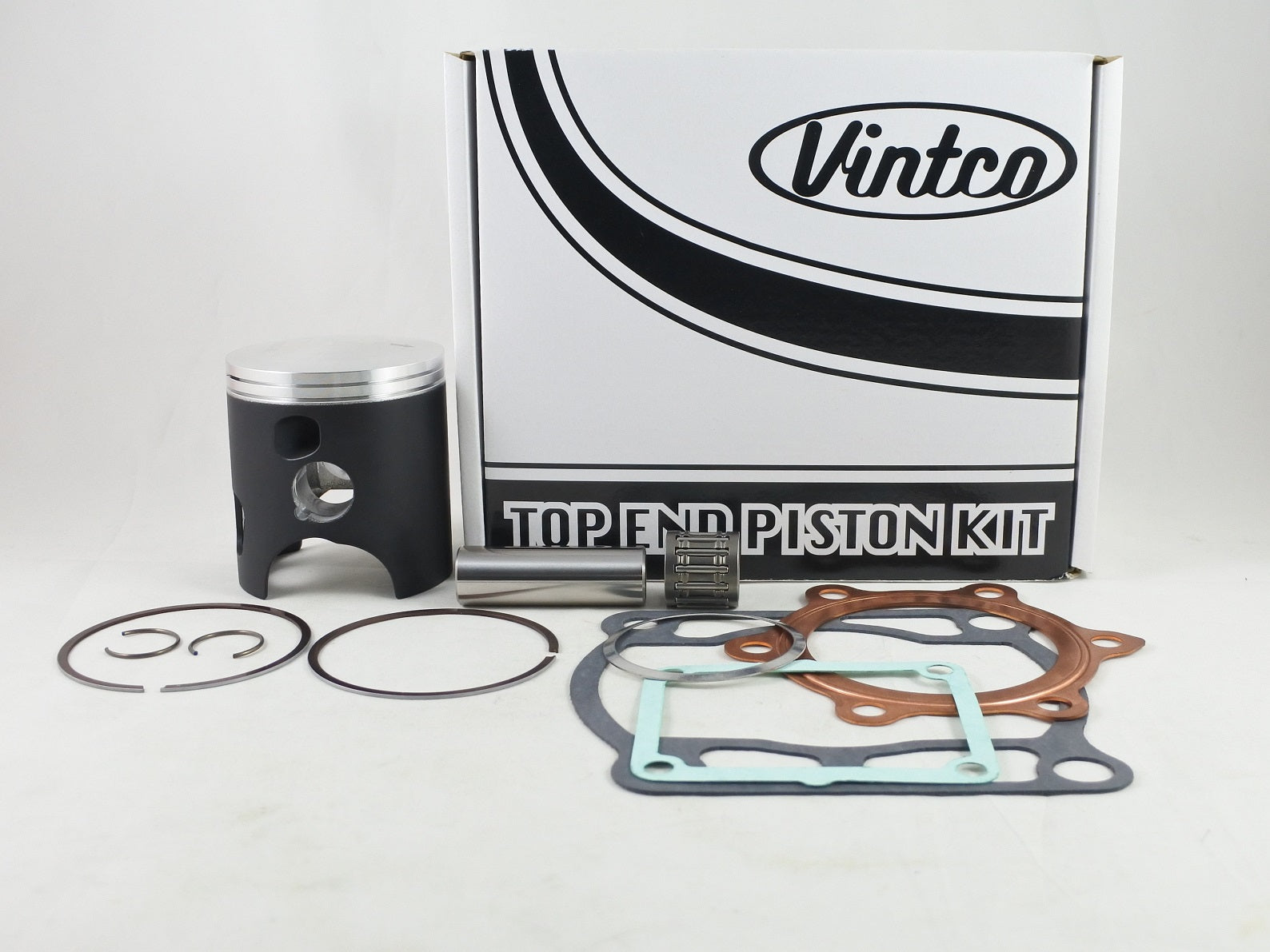

This VintCo top end piston kit is for the 1983 Yamaha IT250 and provides the main components required for a top end rebuild in a 68.5 mm, 0.5 mm over size. The kit includes a forged piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing, and the kit price reflects a 10% reduction compared with purchasing the items individually.

Features

• Complete top end kit for top end rebuild work
• Includes piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing

Specifications

• VintCo Part Number: KTY45-0.5
• Oversize: 0.5 mm over
• Nominal piston size: 68.5 mm
• Piston diameter: 68.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 25Y-11181-00-00
• Cylinder base gasket: 3R4-11351-01-00
• Intake gasket: 80L-13621-01-00
• Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

• 1983 Yamaha IT250
