TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0

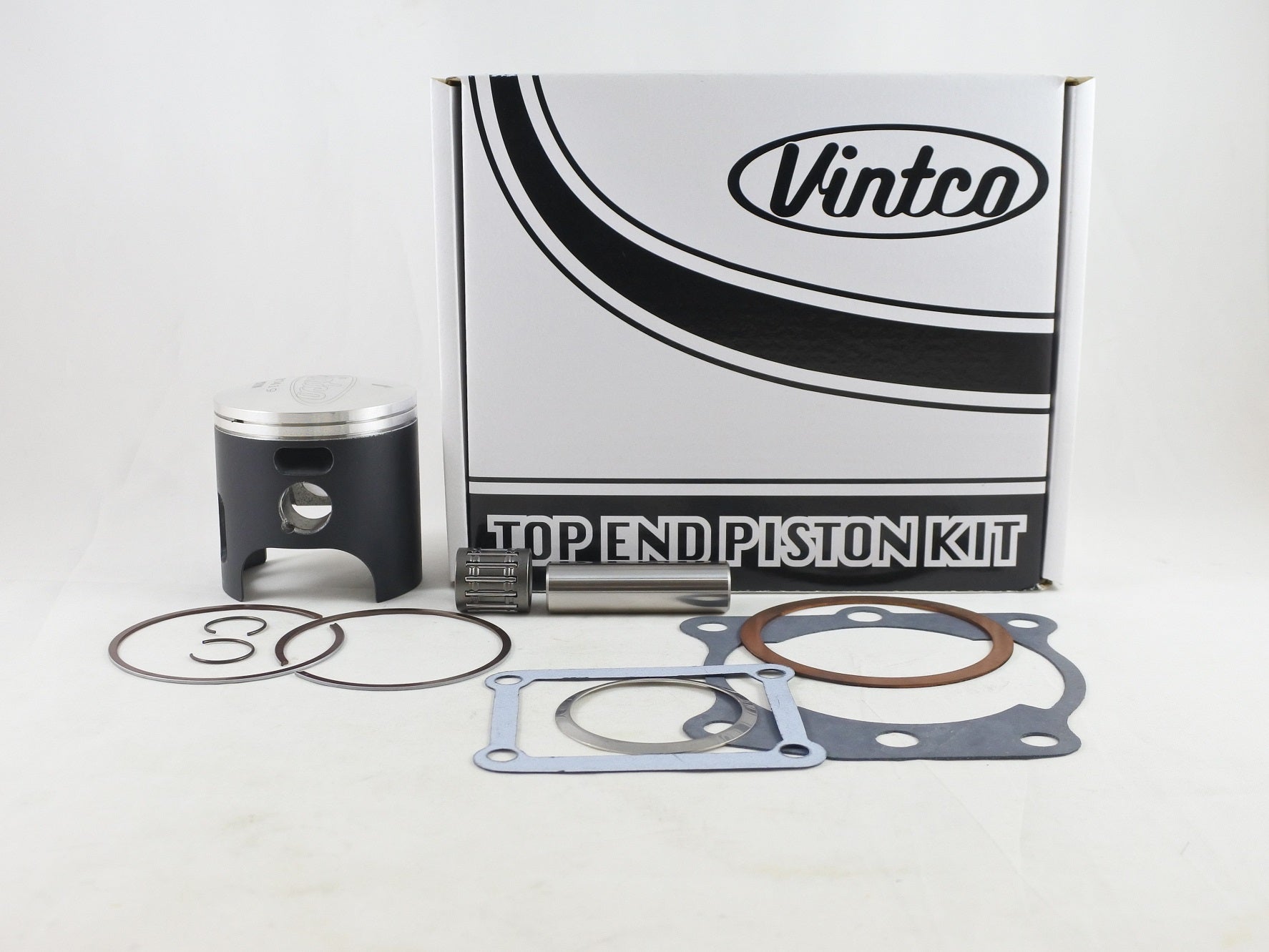

This top end piston kit is designed for 1980-1981 Yamaha IT175 models and is supplied in a 67 mm, 1.0 mm oversize configuration for top end service work. The kit includes a forged piston made in Germany with MOS2 coating for running-in, together with cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing is 10% lower than the combined price of the individual items.

Features

• Complete top end piston kit
• Includes piston, wrist pin bearing and gasket set
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Suitable for top end service on Yamaha IT175 models

Specifications

• VintCo Part Number: KTY28-1.0
• Piston size: 67 mm
• Oversize: 1.0 mm over
• Piston measurement: 66.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 3R6-11181-00-00
• Cylinder base gasket: 3R3-11351-01-00
• Intake gasket: 3R3-13621-01-00
• Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

• 1980 Yamaha IT175
• 1981 Yamaha IT175
