TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00

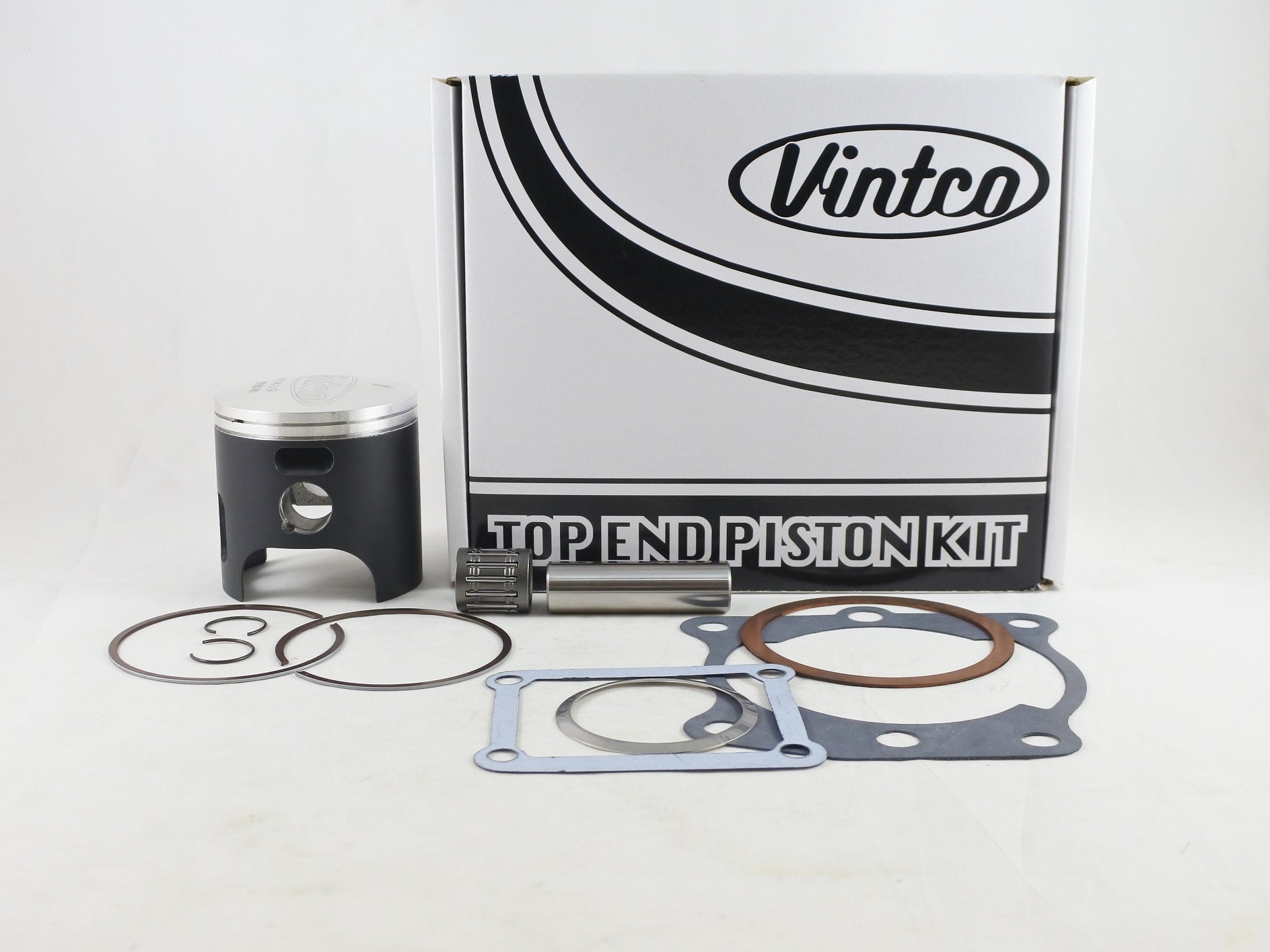

VintCo KTY28-00 is a top end piston kit for 1980 to 1981 Yamaha IT175 models in standard 66 mm size. The kit includes a forged piston with an MOS2 coating for break-in, together with the required cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the components individually.

Features

• Complete top end piston kit
• Forged piston
• MOS2 coated for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY28-00
• Standard size: 66 mm
• Piston size: 65.94 mm
• Clearance: 0.06 mm
• Made in Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 3R6-11181-00-00
• Cylinder base gasket: 3R3-11351-01-00
• Intake gasket: 3R3-13621-01-00
• Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

• 1980 Yamaha IT175
• 1981 Yamaha IT175
