TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5

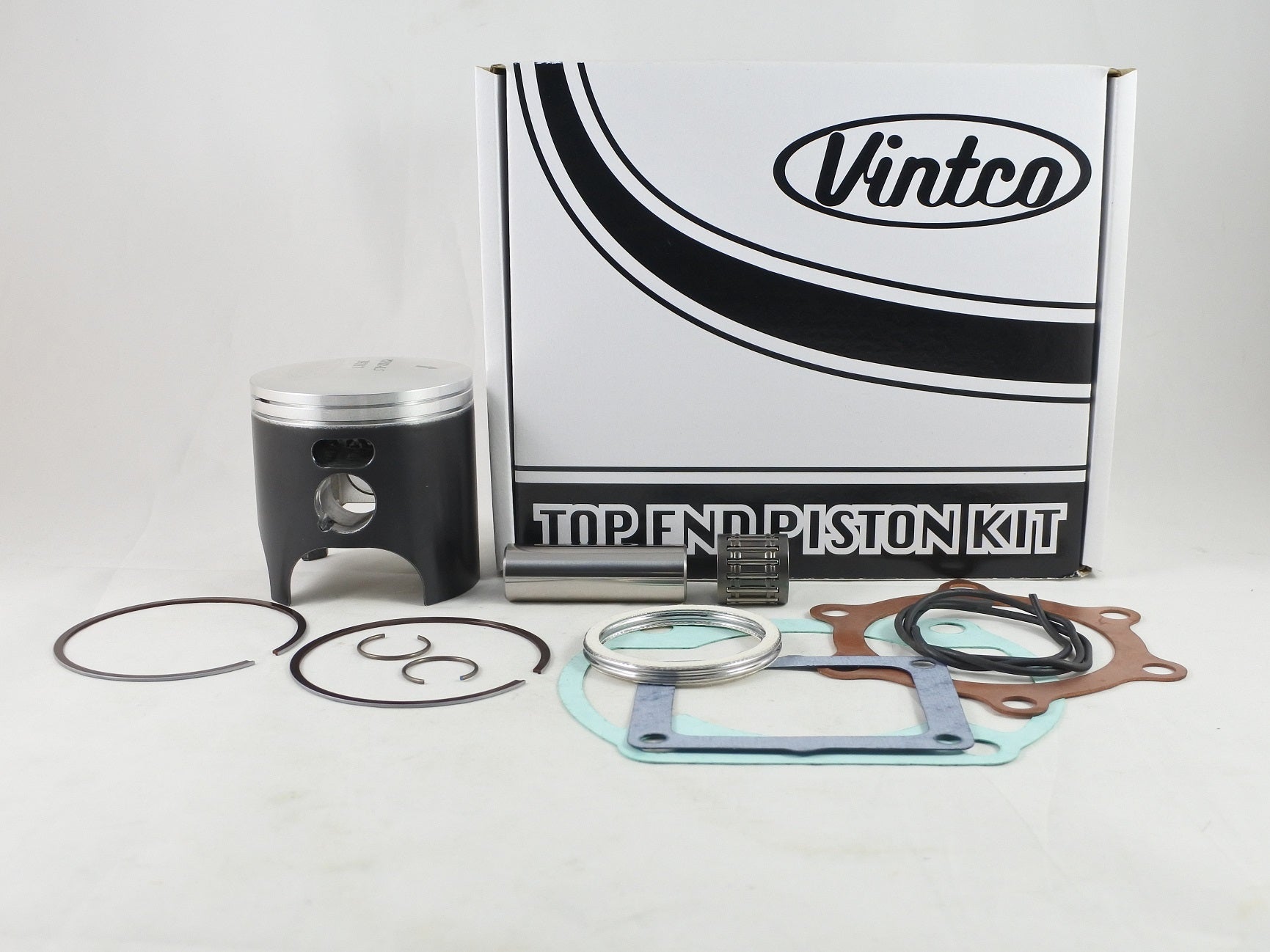

Top end piston kit for the 1978 Yamaha IT250, supplied with a 70.5 mm piston in 0.5 mm oversize. The kit includes a forged piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gaskets and a wrist pin bearing, with kit pricing set at 10% less than the total of the individual items.

Features

• Complete top end piston kit for engine rebuild work
• Includes piston, gaskets and wrist pin bearing
• MOS2-coated piston finish to assist break-in
• Kit price includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTY43-0.5
• Piston size: 70.5 mm
• Oversize: 0.5 mm over
• Piston measurement: 70.44 mm
• Clearance: 0.06 mm
• Forged piston
• Made in Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 1W3-11181-00-00
• Cylinder Base Gasket: 364-11351-01-00
• Intake Gasket: 8Y7-13556-01-00
• Exhaust Pipe Gasket: 214-14613-09-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1978 Yamaha IT250
