TOP END PISTON KIT 76-76 YAMAHA YZ 175 67mm 1.0mm OVER VINTCO KTY68-1.0

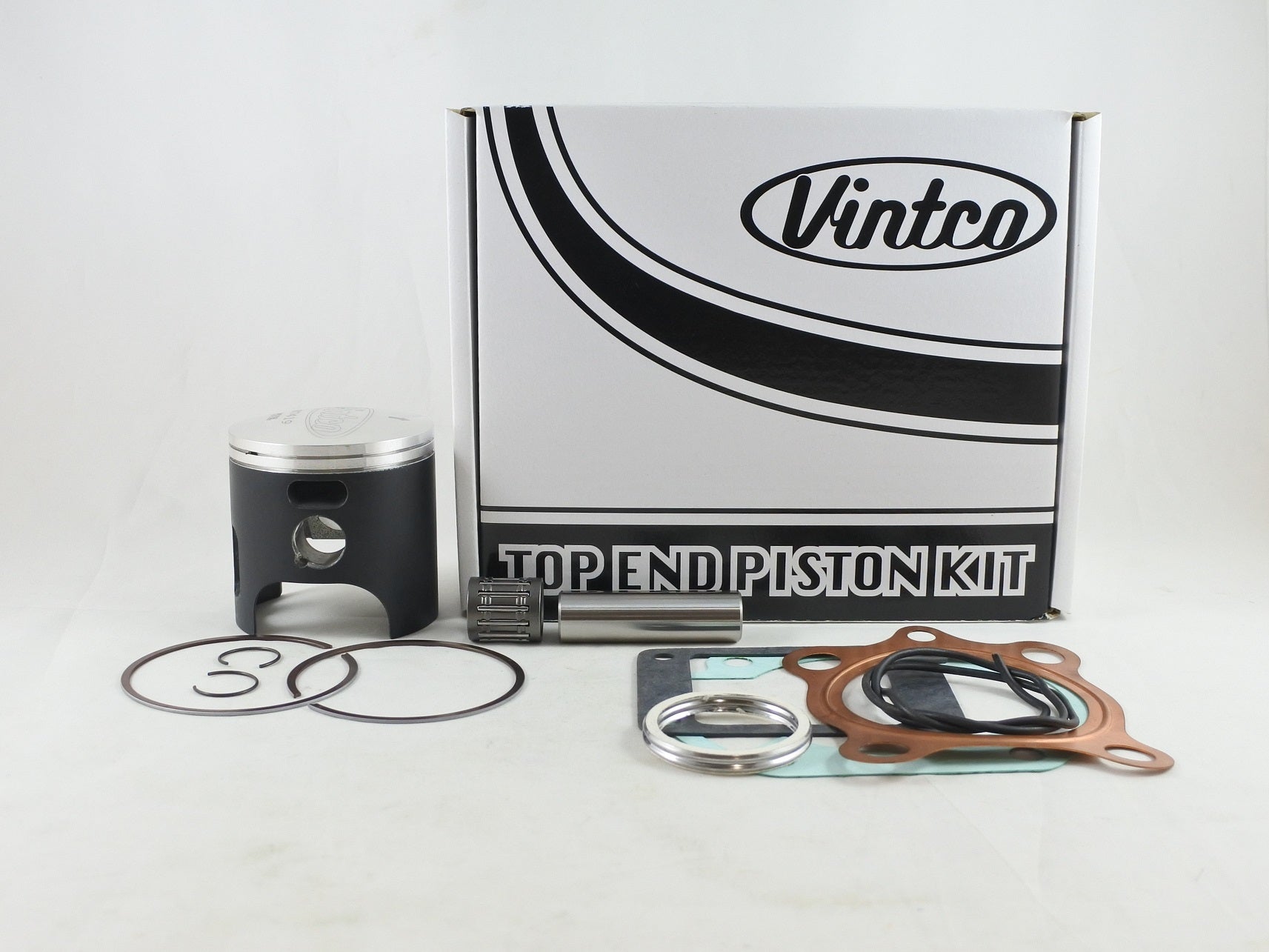

VintCo top end piston kit KTY68-1.0 is a complete top end service kit for the 1976 Yamaha YZ175. It includes a forged piston with MOS2 coating for running-in, the required top end gaskets, and a wrist pin bearing. This kit is supplied for a 67 mm bore size at 1.0 mm over, and the kit price includes a 10% discount compared with the individual items.

Features

• Complete top end piston kit
• Forged piston with MOS2 coating for running-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY68-1.0
• Piston size: 67 mm
• Oversize: 1.0 mm over
• Piston diameter: 66.94 mm
• Clearance: 0.06 mm
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 1L8-11181-01-00
• Cylinder base gasket: 1L8-11351-01-00
• Intake gasket: 3TT-13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00
• Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

• 1976 Yamaha YZ175
