TOP END PISTON KIT 76-76 YAMAHA DT 125 57mm 1mm OVER VINTCO KTY70-1.0

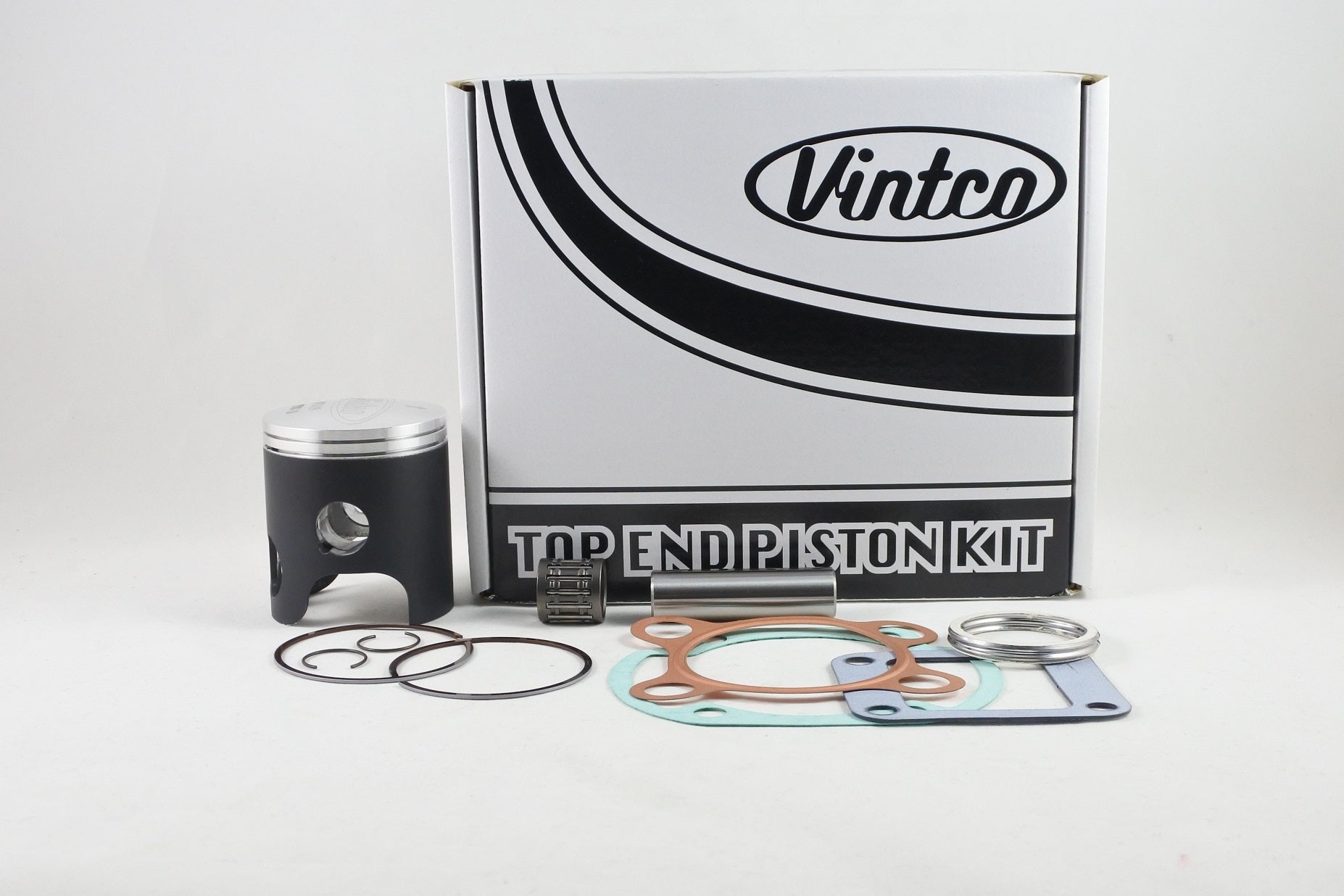

This top end piston kit is for the 1976 Yamaha DT125 and provides the main components required for a top-end rebuild in one package. The kit includes a forged piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket, and wrist pin bearing, with kit pricing set at 10% less than purchasing the items individually.

Features

• Complete top end kit for top-end service work
• Forged piston made in Germany
• MOS2-coated piston to support running-in
• Includes head gasket
• Includes base gasket
• Includes reed valve gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• Kit pricing includes a 10% discount compared with individual item purchase

Specifications

• VintCo Part Number: KTY70-1.0
• Piston size: 57 mm
• Oversize: 1.0 mm
• Piston measurement: 56.94 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 248-11181-00-00
• Base gasket: 1WE-11351-00-00
• Reed valve gasket: 87A13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1976 Yamaha DT125
