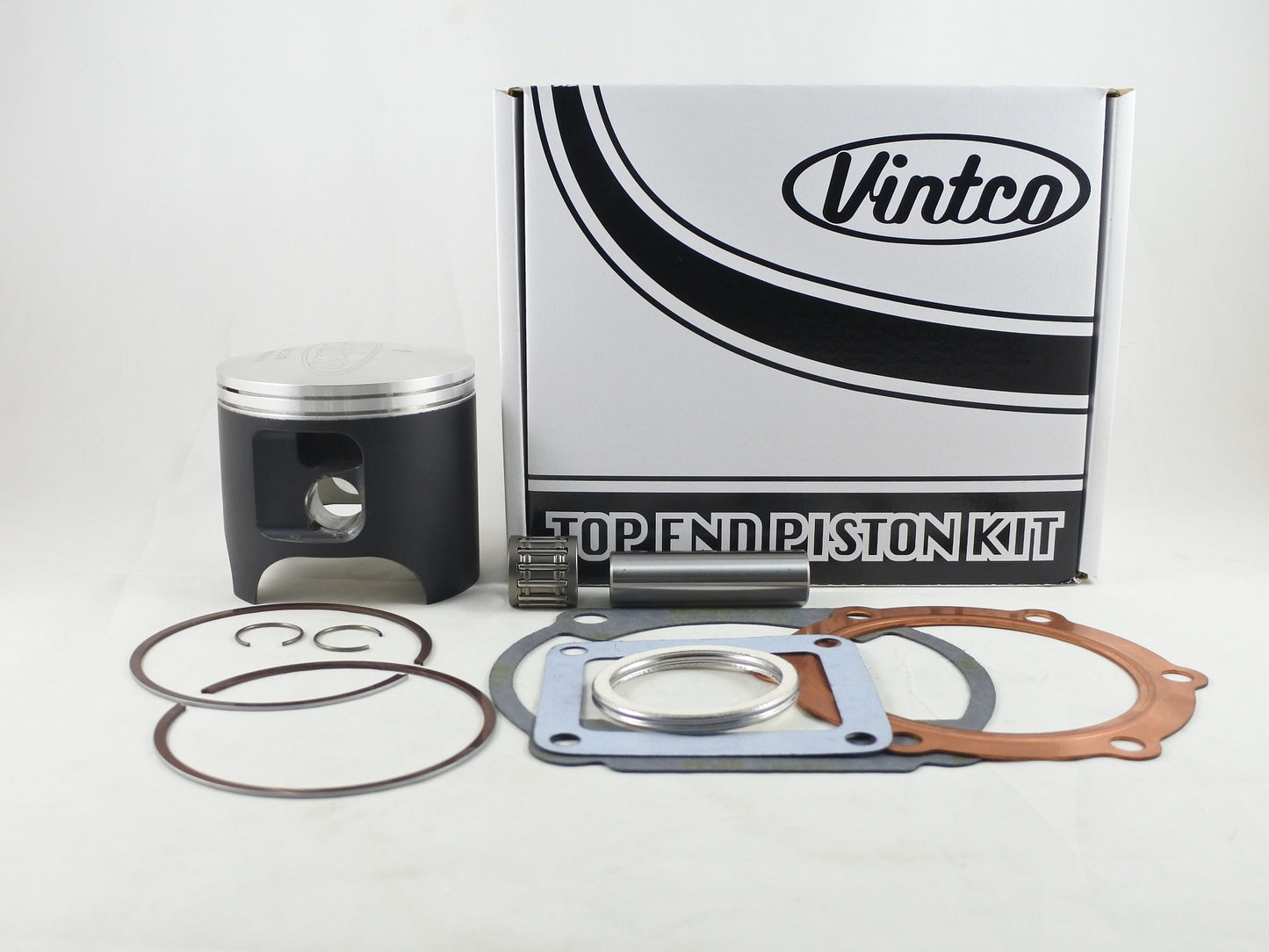

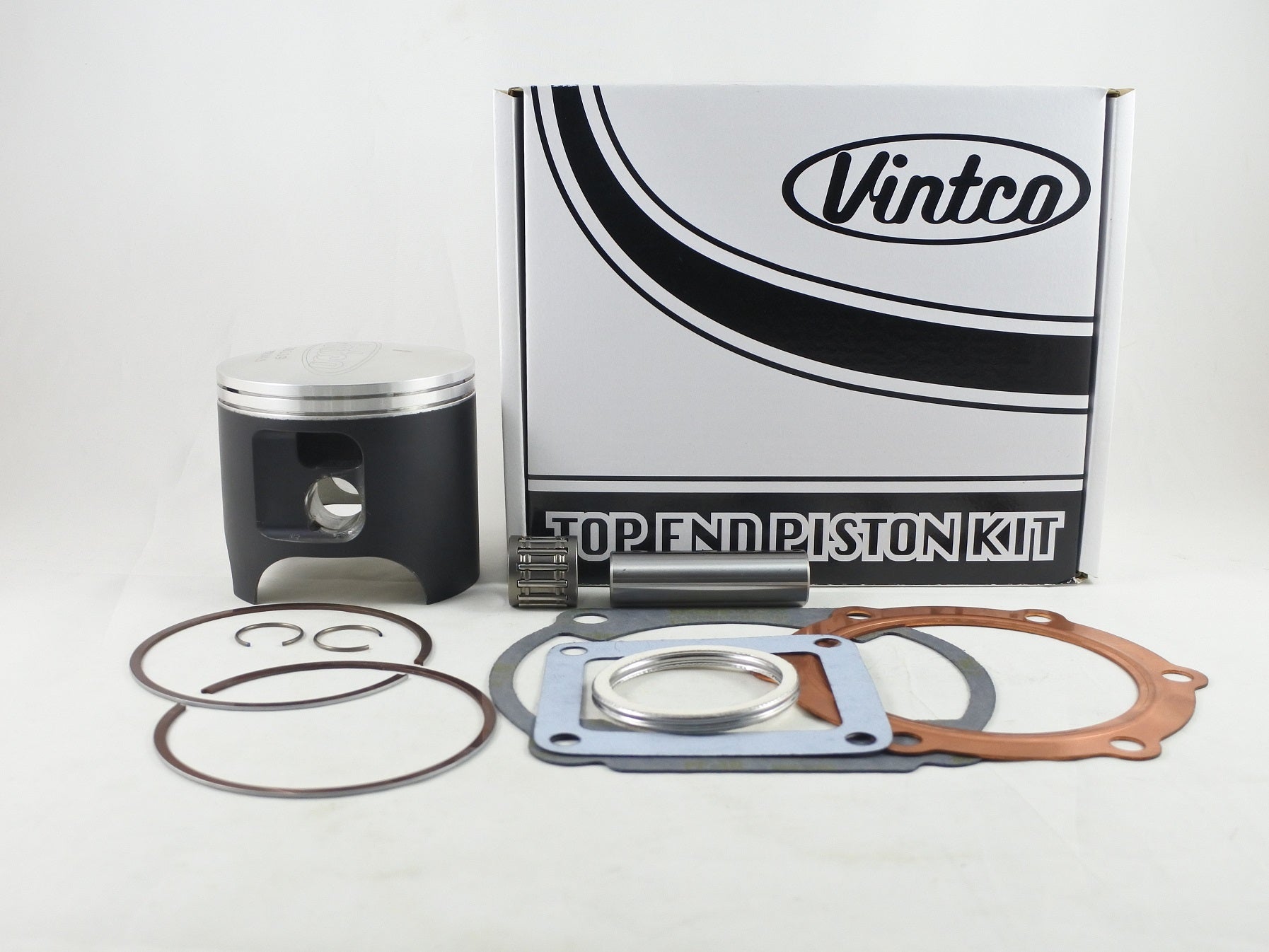

TOP END PISTON KIT 75-76 YAMAHA DT 400 86.5mm 1.5mm OVER VINTCO KTY48-1.5

This top end piston kit is designed for 1975-1976 Yamaha DT400 models and is supplied as a package priced 10% below the equivalent individual items. It includes a forged piston manufactured in Germany with MOS2 coating for running-in, along with the required cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. The kit is specified as 86.5 mm, 1.5 mm over.

Features

• Complete top end piston kit
• Forged piston
• MOS2-coated piston for running-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY48-1.5
• Piston size: 86.5 mm
• Oversize: 1.5 mm over
• Piston measurement: 86.42 mm
• Clearance: 0.08 mm
• Piston manufacture origin: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 500-11181-00-00
• Cylinder Base Gasket: 500-11351-09-00
• Intake Gasket: 363-13621-01-00
• Exhaust Pipe Gasket: 214-14613-09-00

Vehicle Fitments

• 1975 Yamaha DT400
• 1976 Yamaha DT400
