TOP END PISTON KIT 74-75 YAMAHA DT 125 57mm 1.0mm OVER VINTCO KTY69-1.0

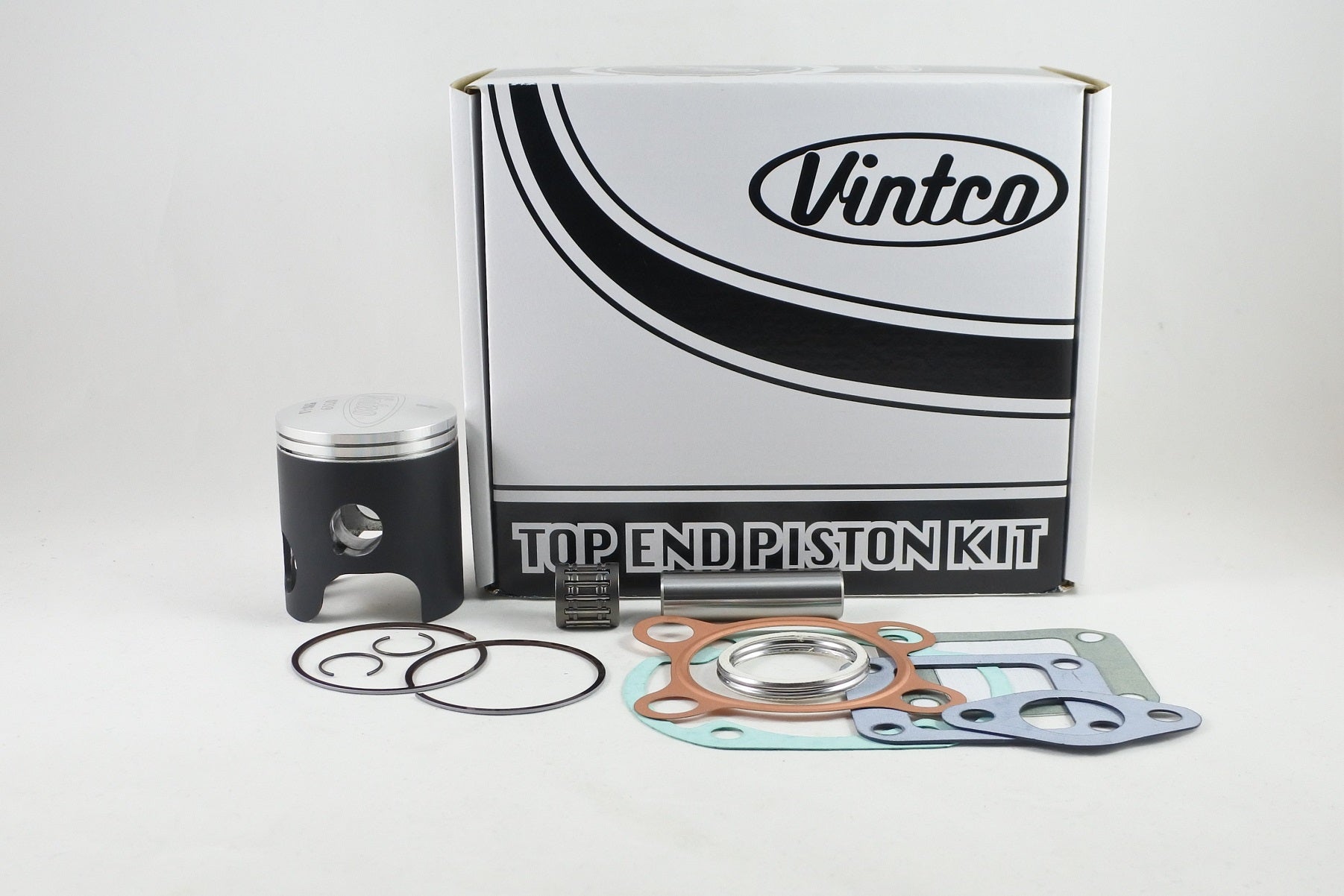

This top end piston kit is designed for 1974-1975 Yamaha DT125 models and provides a complete top end refresh package at a kit price that includes a 10% discount compared with purchasing the individual items separately. The kit includes a forged piston made in Germany with an MOS2 coating for break-in, together with the required head gasket, base gasket, two reed valve gaskets, exhaust pipe gasket and a wrist pin bearing.

Features

• Complete top end piston kit for Yamaha DT125 models
• Kit price includes a 10% discount over individual items
• Forged piston
• MOS2 coating for break-in
• Includes head gasket
• Includes base gasket
• Includes 2 reed valve gaskets
• Includes exhaust pipe gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY69-1.0
• Piston size: 57.0 mm
• Oversize: 1.0 mm
• Piston measurement: 56.94 mm
• Clearance: 0.06 mm
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 248-11181-00-00
• Base gasket: 1WE-011351-00-00
• Reed valve gasket: 87A-13556-71-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1974 Yamaha DT125
• 1975 Yamaha DT125
