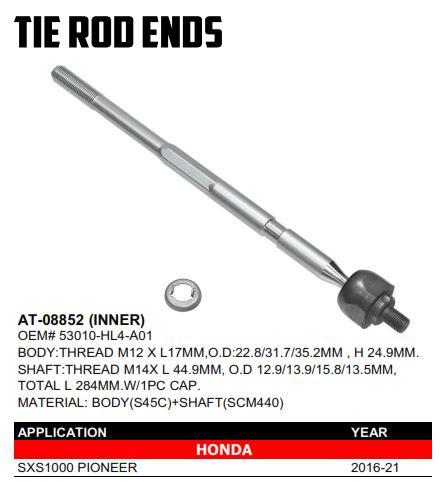

TIE ROD END, INNER, BRONCO AT-08852, 53010-HL4-A01, SXS1000 PIONEER 2016-21

Fitment:

• Honda SXS1000 Pioneer: 2016 - 2021

Specifications:

Body:

• Thread: M12 x L17 mm
• Outer Diameter (O.D.): 22.8 mm / 31.7 mm / 35.2 mm
• Height: 24.9 mm

Shaft:

• Thread: M14 x L44.9 mm
• Outer Diameter (O.D.): 12.9 mm / 13.9 mm / 15.8 mm / 13.5 mm
• Total Length: 284 mm
• Components Included: 1 pc Cap

Material:

• Body: S45C
• Shaft: SCM440

Features:

• Manufactured to strict tolerances for a precise fit
• Heavy-duty steel housings
• POM-M90 bearing cup to isolate the ball end from the steel housing for longer life
• Includes snap ring and cotter pin (where applicable)
• Exact OEM measurements and fittings
• Meets or exceeds OEM specifications
• High-quality replacement part with satisfaction guarantee

Part Number: 17-5043.BR (phoenixmotos.com)

Cross Reference Numbers:

• AT-08852
• 53010-HL4-A01
