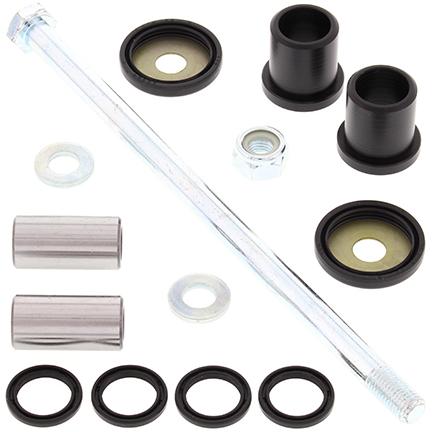

SWINGARM BUSH KIT CRF50, ALLBALLS 28-1163 HONDA XR50

Swingarm Pivot Bolt, Bush & Seal Kit
Brand: ALLBALLS
Part Number: 28-1163

Key Features:

• Replace your bearings with OEM quality components at a fraction of the cost.
• Kit includes everything needed for a complete rebuild—bearings, seals, shafts, and spacers.
• Does not include shock pivot point bearings.

Model Fitment:

Honda

• CRF50F (2004-2016)
• CRF70F (2004-2012)
• XR50R (2000-2003)
• XR70R (1997-2003)
• Z-50 (1973-1978)
• Z-50R (1979-1999)
• Z-50RD (1986)

Swing Arm Bearing Installation Instructions:

Preparation:

• Ensure the swing arm or linkage bearing bores are clean and free from burrs before installing the needle bearings. It’s helpful to have the entire swing arm or linkage clean to prevent dirt from entering the bearings.

Bearing Installation:

• The needle bearings should be installed using a press and a tool slightly smaller than the outer diameter of the needle bearing (a socket can often work well for this). A vice may also work if no press is available. Avoid using hammer blows to install the needle bearings, as this can damage them.
• Note: Heating the bearing bore of the swing arm or linkage will make bearing installation easier.

Greasing Bearings:

• Once the bearings are installed, grease them excessively. The more grease, the better.

Seal Installation:

• When installing the seals, grease the inner seal surface that contacts the mating parts. The grease helps lubricate the seal and provides an additional barrier against dirt and water.
