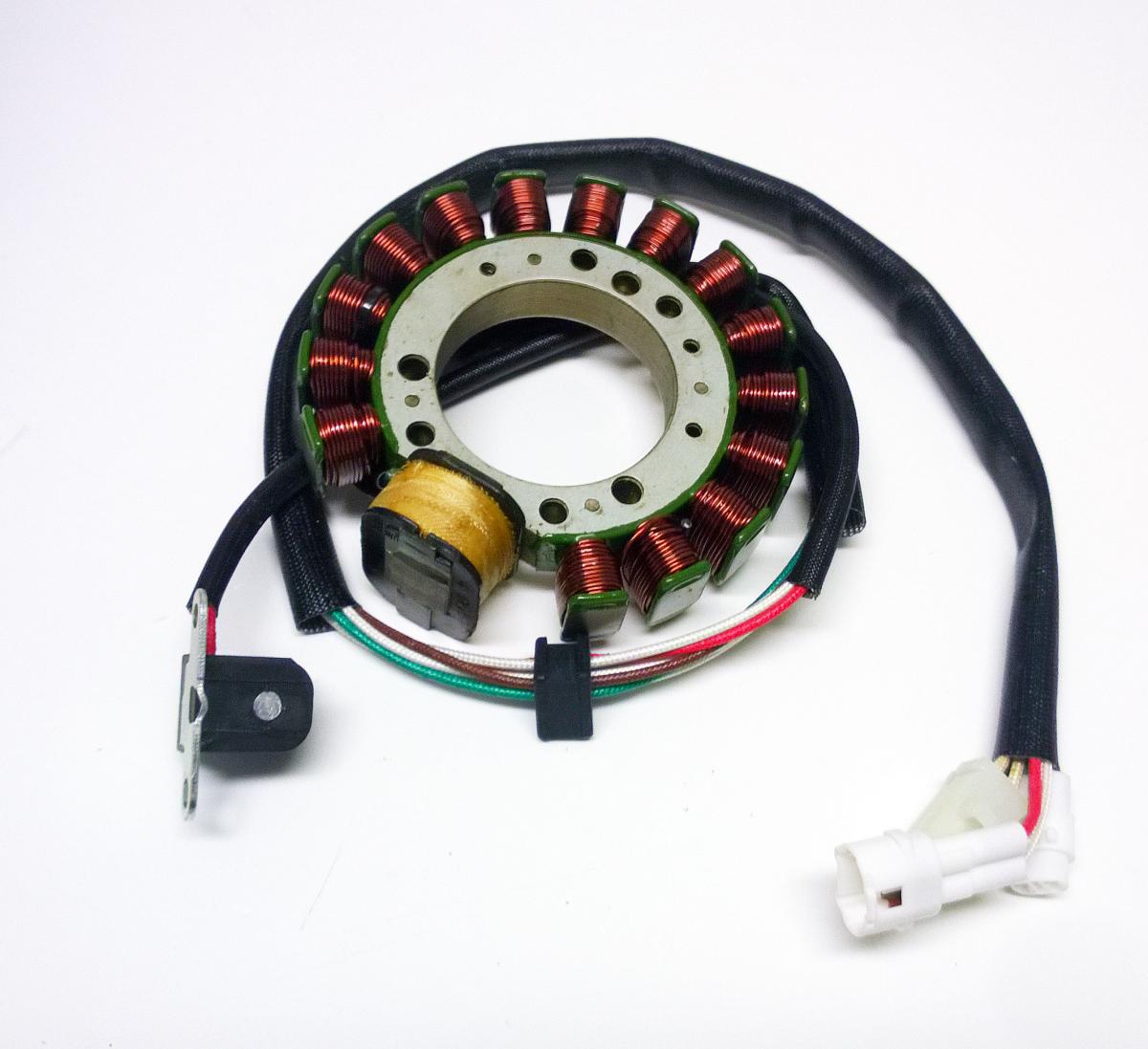

STATOR COIL, YFM350 YFM400 YAMAHA, 3HN-85510-10-00, 4GB-85510-10, 21-911
STATOR COIL, YFM350 YFM400 YAMAHA, 3HN-85510-10-00, 4GB-85510-10, 21-911
Couldn't load pickup availability
YFM 350 Big Bear 1996 - 1998,
YFM 400 Kodiak 4WD 1996 - 1998,
YFM 350 Warrior 1996 - 2001,
YFM 350 Big Bear 1995,
YFM 400 Kodiak 1993 - 1998,
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Diametro exterior (external diameter) | 115 [mm] |
| Diametro interior (internal diameter) | 54 [mm] |
| # bobinas de carga (# power coils) | 15 [UN] |
| # bobinas alimentacion (# source coils) | 1 [UN] |
| Resistencia bobina (coil resistance) | 305 [Ohm] |
| Con sensor (with sensor) | SI |
| Resistencia sensor (pick-up resistance) | 430 [Ohm] |
| Apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| 00_Estator | 16 polos | Aislado de Masa | |||
| Yamaha | YFM | Big Bear | 350 | 1995 | 4GB-85510-10-00 |
| Yamaha | YFM | Kodiak | 400 | from 1993 to 1995 | 4GB-85510-10-00 |
| Yamaha | YFM | Kodiak | 400 | from 1996 to 1998 | 3HN-85510-10-00 |
| Yamaha | YFM | Warrior | 350 | from 1996 to 2001 | 3HN-85510-10-00 |
| Yamaha | YFM | Moto-4 | 350 | 1995 | 4GB-85510-10-00 |
| Yamaha | YFM | Big Bear | 350 | from 1996 to 1998 | 3HN-85510-10-00 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
APROX SIZE. I.D 54mm X O.D 115 X H 16.5mm.Hole 6.5mm C TO C
64mm. Wire Length 63cm. 3 Connector / 7 Wire.
Part No. 44-0970 (phoenixmotos.com)
Cross reference numbers ONLY.
AT-01449, 2914, 3HN-85510-10-00, 4GB-85510-10-00, AYA4030, 4GB-85510-10-00 / 3HN-85510-10-00
YAMAHA All-Terrain Vehicle (ATV) Big Bear 350 2WD YFM350U 1996 348cc , YAMAHA All-Terrain Vehicle (ATV) Big Bear 350 2WD YFM350U 1997 348cc , YAMAHA All-Terrain Vehicle (ATV) Big Bear 350 2WD YFM350U 1998 348cc , YAMAHA All-Terrain Vehicle (ATV) Big Bear 350 4WD
