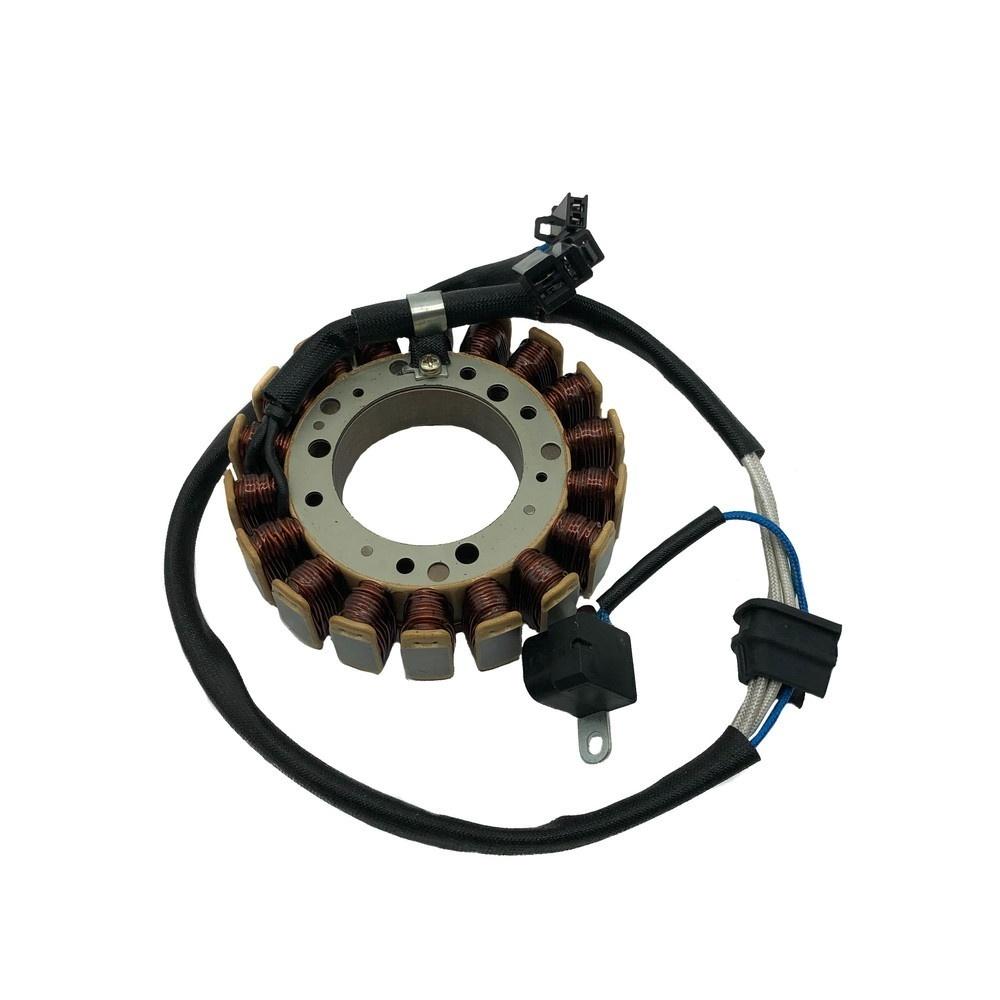

STATOR COIL VL1500, ARROWHEAD ASU4026, 32101-10F10, 32101-10F11

SUZUKI
2005-09 Suzuki VL1500 C90 Boulevard Cruiser w/1462cc
2005-09 Suzuki VL1500T C90T Boulevard Touring w/1462cc

STATOR COIL ARROWHEAD ASU4026

ID 53.5mm OD 115.6mm
Width (OD) 29.3mm, (ID) 20.2mm
# Posts 18 Mtg. Holes 3 - 6.4, 4 - 4.81
w/Pickup Coil
Cord Length 24 inches (1 Main Plug and 1 Pickup Plug)
Cord Length 5 inches (Clamp on Stator To Grommet)
Cord Length Pickup Coil 1.75 inches

Cross reference numbers ONLY.
32101-10F10, 32101-10F11
