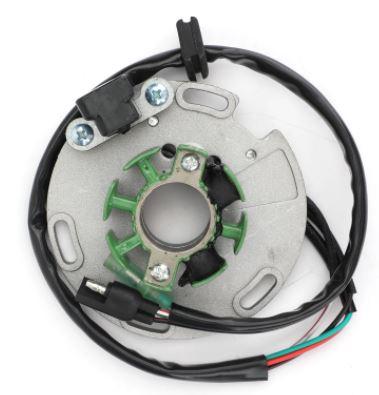

STATOR COIL SUZUKI RM 125 89-95 RM 250 94-95 32101-27C00 32101-27C01 32101-27C10

Stator Coil for Suzuki RM125 1989-1995 and RM250 1994-1995

Stator Coils are heavy-duty three-phase, direct plug-in replacements designed for Suzuki RM125 models manufactured between 1989 and 1995, and RM250 models from 1994 to 1995. Each stator comes complete with all necessary rubbers and an OEM-style plug end for hassle-free installation.

Key Features:

• Meets or exceeds OEM quality standards to ensure reliable performance.
• Direct OEM replacement, providing a perfect fit for your bike.
• All products are factory tested for 100% reliability at the point of sale.
• Designed to handle increased power loads effectively.

Important Note:

• Please check the product image carefully before placing your order to avoid any mistakes.
• Due to the nature of electrical parts, we do not accept returns on them. Please ensure compatibility before purchasing.

Product Specifications:

• Interior diameter: 28mm / 1.10"
• Exterior diameter: 58mm / 2.30"
• Pole's Thickness: 30mm / 1.18"
• Pole's Width: 17mm / 0.67"
• Number of wires: 4
• Number of pins: 4
• Number of plugs: 4
• Number of fixation holes: 4
• Number of poles: 8
• Fixation holes length: 19mm / 0.75"
• Bottom Length: 109mm / 4.31"

Cross Reference Numbers:

• PSYCHIC MX-01353
• OEM Part Numbers: 32101-27C00, 32101-27C01, 32101-27C10, 32101-28E00, 32101-43D00, 32101-43D10, RM01454
