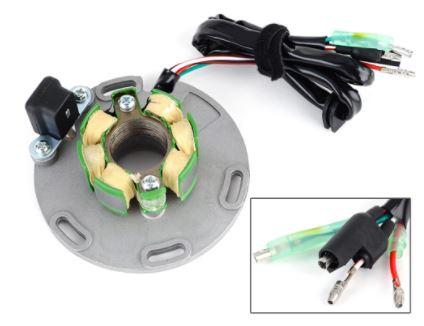

STATOR COIL SUZUKI RM 125 250 32101-01B30 32101-01B31 32101-00B30 32101-28C01

Stator Coil Suzuki

Compatibility:

• RM125: 1987-1988
• RM250: 1986-1993

The Stator Coils offered are heavy-duty three-phase coils that can be directly plugged in. They come complete with all necessary rubbers and an OEM-style plug end.

Product Features:

• 4 Wire Connectors
• Meets or exceeds OEM quality
• Direct OEM replacement
• Factory tested for 100% reliability at the point of sale
• Designed to handle increased power loads

Please note that the color of the coil wrapping may vary. These products are from ORO, known for their high-quality replacement parts, and they carry a guarantee of your satisfaction.

Before ordering, please check the image to avoid any mistakes, as there are no returns on electrical parts.

Specifications:

• Interior diameter: 27mm / 1.08"
• Exterior diameter: 57mm / 2.27"
• Pole's Thickness: 30mm / 1.18"
• Pole's Width: 17mm / 0.67"
• Number of wires: 4
• Number of pins: 4
• Number of plugs: 4
• Number of fixation holes: 4
• Number of poles: 8
• Fixation holes length: 19mm / 0.75"
• Bottom Length: 110mm / 4.33"

Cross Reference Numbers:

• PSYCHIC MX-01354
• 32101-01B32
• 32101-36E00
• 32101-00B30
• 32101-00B31
• 32101-01B30
• 32101-01B31
• 32101-01B32
• 32101-28C00
• XQ-394

OEM Replacements:

• 32101-01B30
• 32101-01B31
• 32101-00B30
• 32101-28C01
• 32101-28C02
• 32101-28C03
• 32101-00B31
• 32101-01B32
• 32101-28C00

Compatible with RM01452.

Please make sure to verify the compatibility with your specific model before making a purchase.
