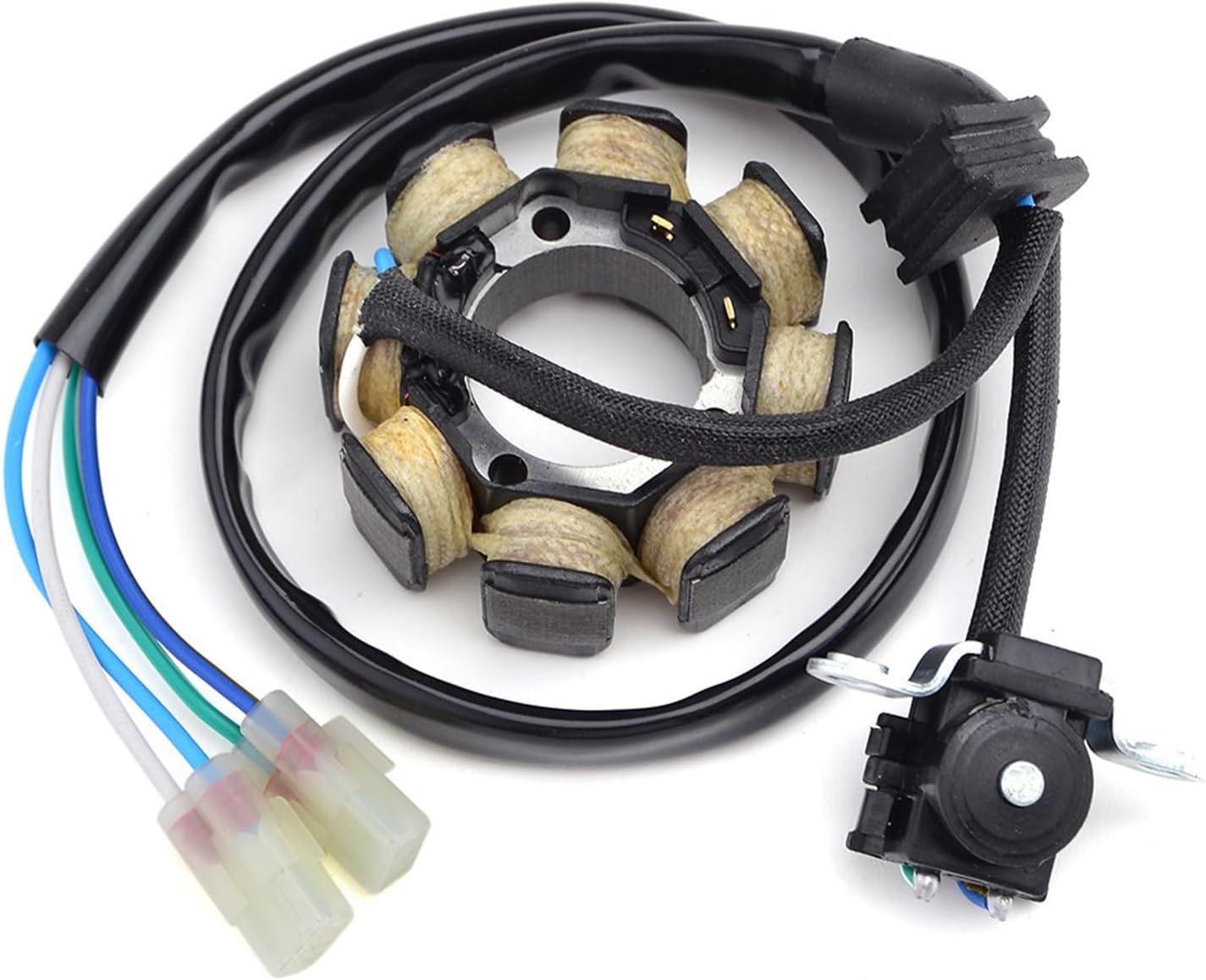

STATOR COIL 2004 HONDA CRF450 CRF 450 R 31120-MEN-003

Honda Compatibility List:

• CRF 450 2004
• CRF 450R 2004

Dimensions:

• Interior diameter : 28mm
• Exterior diameter : 60mm
• Thickness : 14mm
• Length of wires stator to grommet : 120mm
• Length of wires grommet to plug : 400mm
• Length of pickup coil's wire to grommet : 70mm

Specifications :

• Number of wires : 4
• Number of plugs : 0
• Number of pins : 4

Wire to wire resistance :

• Pickup : White/green to Blue/yellow = 285 ohms +/-20%
• Source : Blue to White = 23 ohms +/-20%

Cross reference numbers ONLY.

• 31120-MEN-000
• 31120-MEN-003
