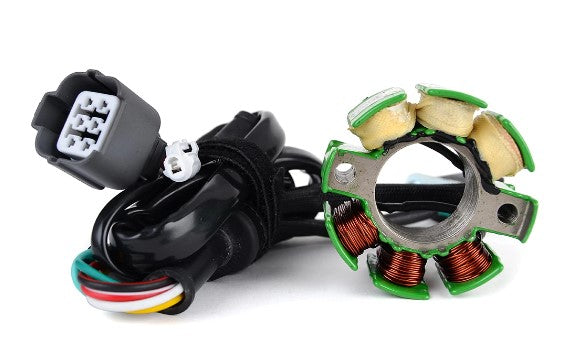

STATOR COIL 2004-2010 KAWASAKI KX250F 2005-2006 SUZUKI RM-Z 250 21003-0015 K2100-30027

This stator coil is a high-quality replacement component designed for specific Kawasaki and Suzuki motorcycle models, ensuring efficient electrical performance and reliability.

Features:

• Direct OEM replacement for seamless installation.
• Manufactured to exacting standards for reliability and durability.
• Designed to handle increased power loads.
• Stock mounting locations for easy fitting.

Specifications:

• Interior Diameter: 28 mm
• Exterior Diameter: 58 mm
• Thickness: 16 mm

Wire Lengths:

• Stator to Grommet: 100 mm
• Grommet to Plug: 375 mm
• Pickup Coil to Grommet: 80 mm
• Number of Wires: 7
• Number of Plugs: 3
• Number of Pins: 7

Wire-to-Wire Resistance:

• Alternator: White to Yellow = 3.0 ohms ±20%
• Pickup: Green to Blue/White = 120 ohms ±20%
• Source: White/Red to Black/Red = 38 ohms ±20%

Compatibility:

• Kawasaki KX250F: 2004-2010
• Suzuki RM-Z250: 2005-2006

Cross-Reference OEM Part Numbers:

• 21003-0015
• 21003-0027
• 21003-0048
• 21003-0091
• K2100-30015
• K2100-30027
• K2100-30048
