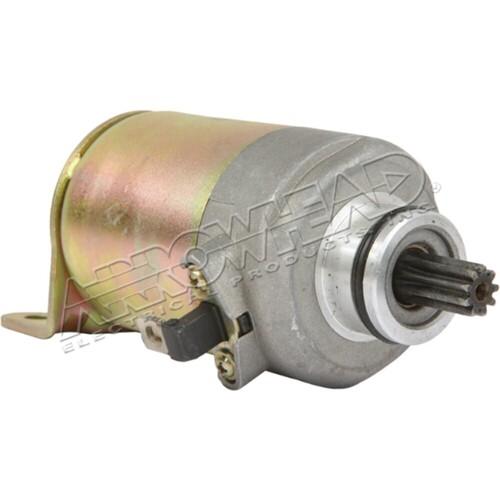

STARTER MOTOR HONDA APRILIA, ARROWHEAD SCH0001 CHINA BUILT

HONDA
CH150 SCOOTER 1985-87,
APRILIA LEONARDO 125, 150,
SCARABEO 125, 150, 200 ROTAX ENGINE,
BMW C1 125, 200, China Built Atv And Scooters,

STARTER MOTOR ARROWHEAD SCH0001

Product discription. STARTER MOTOR PMDD; 12-Volt; CW; 9-Tooth; SCH0001

Type: PMDD Voltage: 12 Volts Rotation: CW Teeth/Splines: 9 Teeth/Splines Pinion/Splines OD: 11.4mm / 0.449in Mounting Hole 1: 6mm ID Unthreaded Mounting Hole 2: 6mm ID Unthreaded New or Remanufactured: New

Approximate Weight: 2.3 lbs / 1.05 kg

Part No. 19-9819.AH (oro2u.com)

Cross reference numbers ONLY. ARROWHEAD SCH0001 BARSANCO 740-19571 BBB SMALL MOTOR 22-19571 EMS 199-070N J & N 410-58002 LESTER 19571
