STARTER 07-25 SUZUKI LT-A 450 500 550 KINGQUAD AXI 31100-11H00

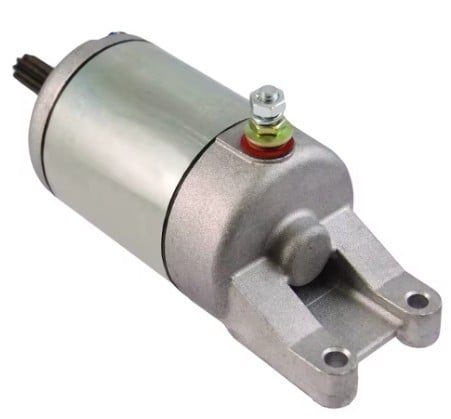

Suzuki KingQuad starter motor designed as a direct replacement for the original starting motor on compatible LT-A450X and LT-A500 KingQuad ATV models. This 12 V PMDD starter motor uses a 9-spline drive and clockwise rotation, matching the original equipment appearance and fitment requirements for listed Suzuki applications.

Features

• Direct OEM-style replacement starter motor
• Manufactured to OEM specifications
• Matches the original equipment appearance
• Designed to handle increased power loads
• Factory tested before dispatch
• Intended as a value-focused replacement option
• Electrical component supplied as non-returnable and with no warranty
• Product image should be checked before ordering to help confirm correct fitment

Specifications

• Voltage: 12 V
• Drive teeth: 9-spline
• Rotation: Clockwise
• Starter type: PMDD

Cross-Reference OEM Part Numbers

• 19-145.DR
• SMU0421
• 31100-11H00
• LESTER 19631
• ARROWHEAD SMU0421
• 19631 LESTER
• 31100-11H00 SUZUKI
• 191-491
• 22-19631 BBB SMALL MOTOR
• SA-112N EMS
• P535N MPA SMALL MOTOR
• 49-5808 TUCKER ROCKY
• 71-26-19631 WILSON SMALL ENGINE

Vehicle Fitments

Suzuki

• LT-A450X KingQuad (2007-2010)
• LT-A500 KingQuad AXi (2009-2023, 2025)
• LT-A550 KingQuad AXi (2012)
