START IGNITION SWITCH REPLACEMENT KEY LOCK SET SUR-RON ULTRA BEE

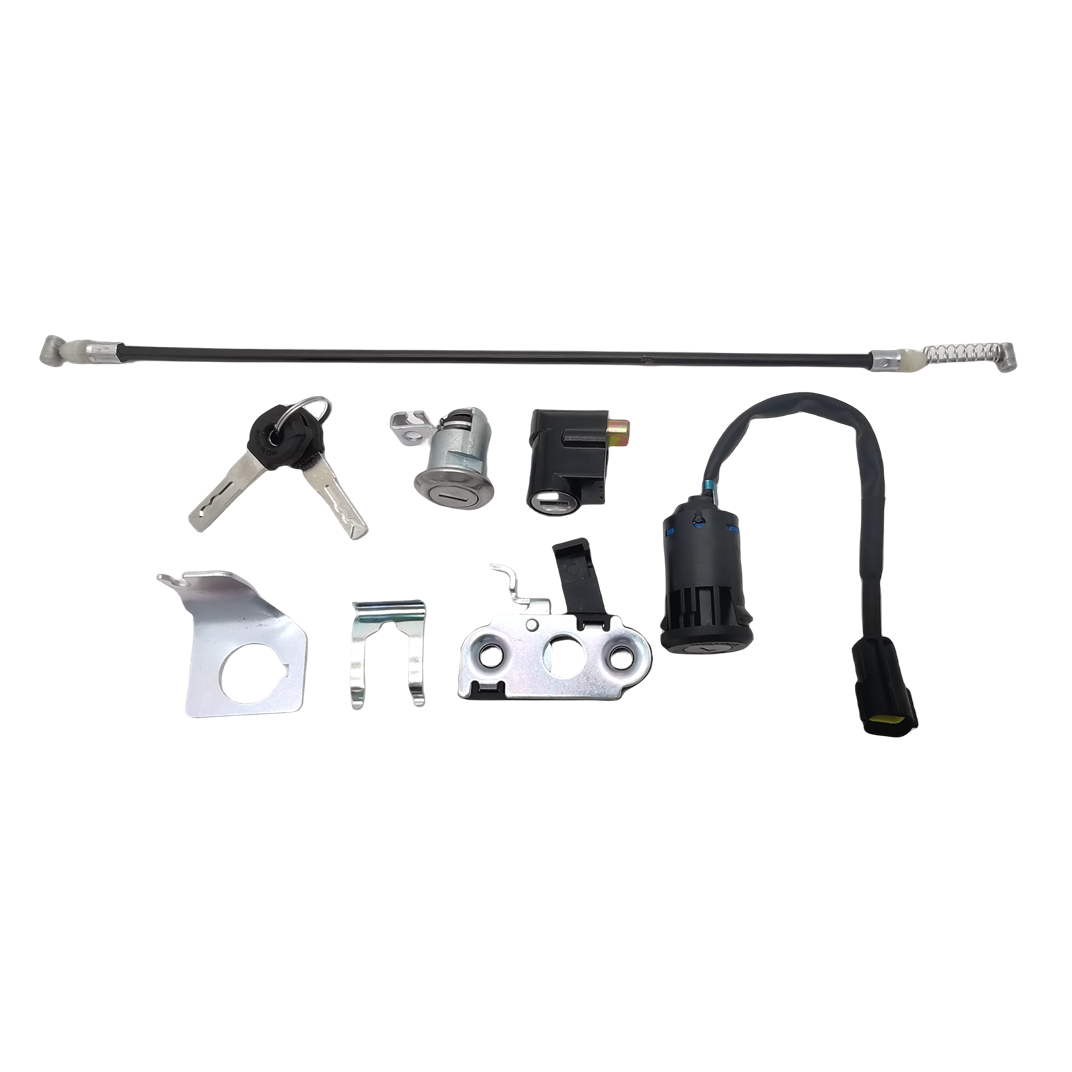

The Sur-Ron Ultra Bee start ignition switch replacement key set is a complete lock and key assembly for replacing damaged, faulty or lost-key ignition and locking components. It restores normal keyed start operation and provides matched replacement lock parts for the main ignition and associated security lock points on the bike.

Features

• Replaces the original ignition key switch assembly
• Restores keyed start control where the original switch or keys are missing, damaged or faulty
• Provides matched lock operation across the supplied lock components
• Supports replacement of associated battery, seat and steering lock parts
• Designed for direct installation using the original-style mounting layout

Specifications

• Supplied as a complete key switch and lock set
• Includes 2 keys
• Includes ignition switch barrel
• Includes battery compartment lock
• Includes steering lock/front fork anti-theft lock component
• Includes seat lock mechanism
• Includes lock cable
• Includes cable holder
• Includes spring clamp
• Includes seat lock stand
• Includes mounting hardware as shown
• Uses an OEM-style electrical connector

Cross-Reference OEM Part Numbers

• Complete Key Switch Set: 27000-YQ5A-0000
• Steering Lock: 27100-YQ2B-0100
• Key Switch / Ignition Switch: 27260-YS1B-0000
• Seat Lock: 27230-YQ5A-0000
• Cable Holder: 27233-YQ5A-0000
• Spring Clamp: 27232-YQ5A-0000
• Seat Lock Stand: 27231-YQ5A-0000
• Seat Lock Cable: 71150-YQ5A-0000

Vehicle Fitments

• Sur-Ron Ultra Bee – replacement key switch and lock set application
