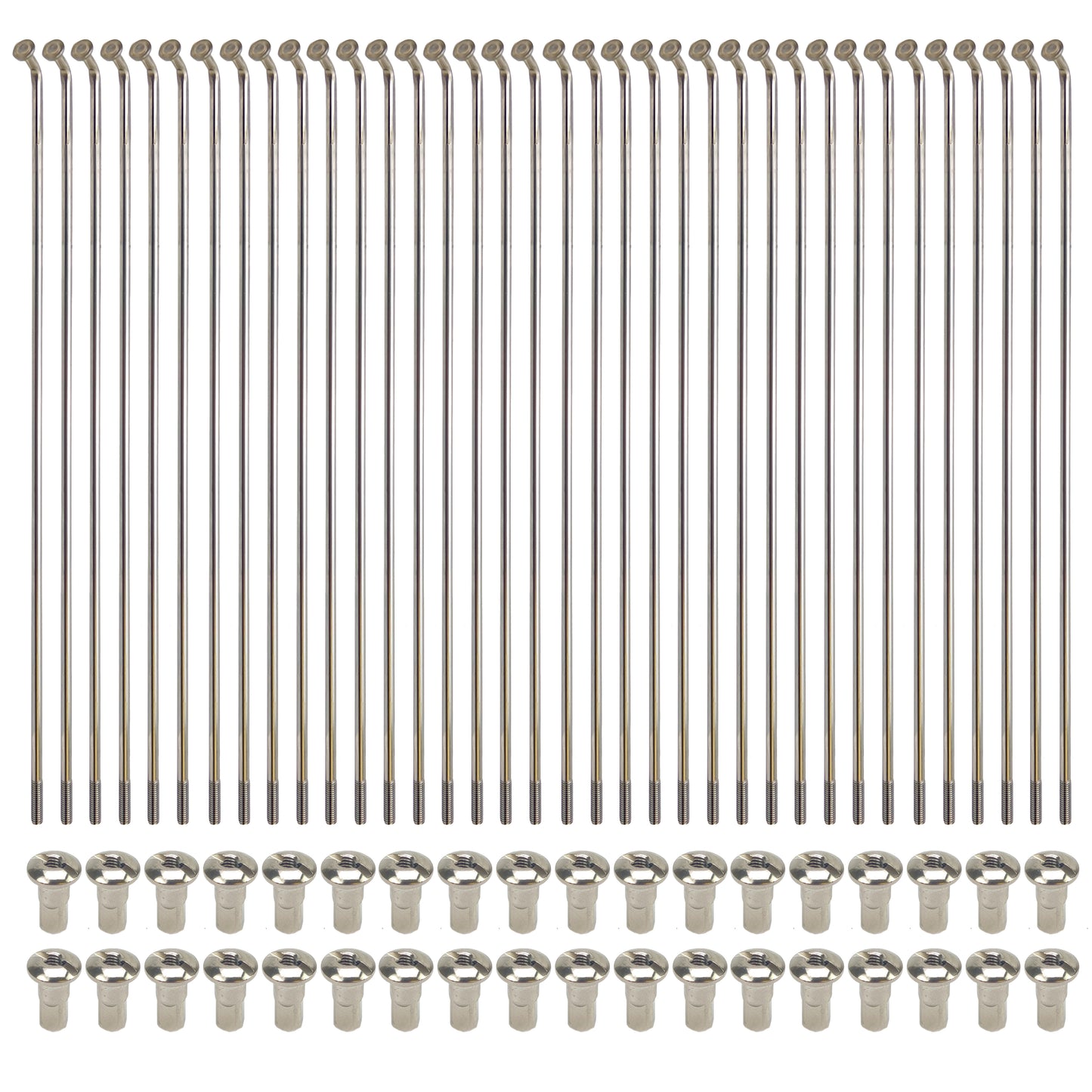

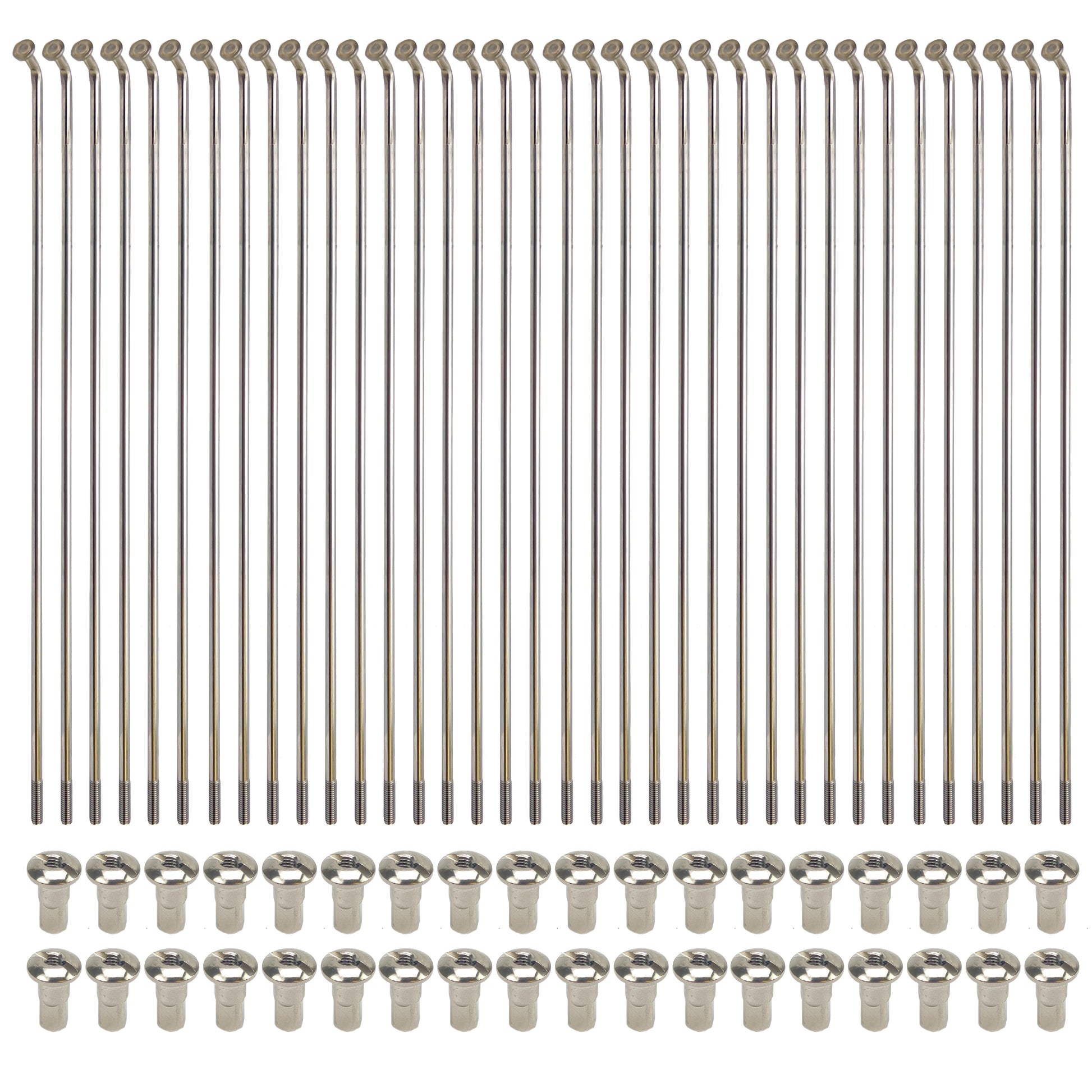

SPOKE SET 18"x 36 KX KXF 03-10, CROSS-CENTER 50-0018 KAWASAKI, CC50-18, CC50-0018

Part No. 85-654 (Phoenix Motos Ltd.)
KXF250 04-ON,
KXF450 06-ON, KXL250/450 06-ON
KX125/250/500 03-08 KAWASAKI
18" Spoke Set 8G/300 QTY 36 Rear. STAINLESS STEEL.

Cross reference numbers ONLY. CROSS-CENTER 50-0018, 192 mm 41029-0039, 194 mm 41029-0048
This spoke set has 36 spokes with nickel plated steel nipples. For: 18” rear wheel. Spoke size: 27 spokes of 4x190 mm. Kawasaki OEM Ref. 41032-1085.

Suzuki OEM Ref. K4103-21085. These spokes should be on the sprocket side and on the outer disc side. Spoke size: 9 spokes of 4x192 mm. Kawasaki OEM Ref. 41029-1330. Suzuki OEM Ref. K4102-91330. These spokes are the inner spokes on the disc side.
Nipple size: 7,6x20 mm matching all rims with holes from 8
