SPOKE SET 16"x 28 KX80 KX85, CROSS-CENTER 50-0016 98-ON, CC50-16, CC50-0016

KAWASAKI
KX 80 1988-2000
KX 85 2001-
KX 100 1998-

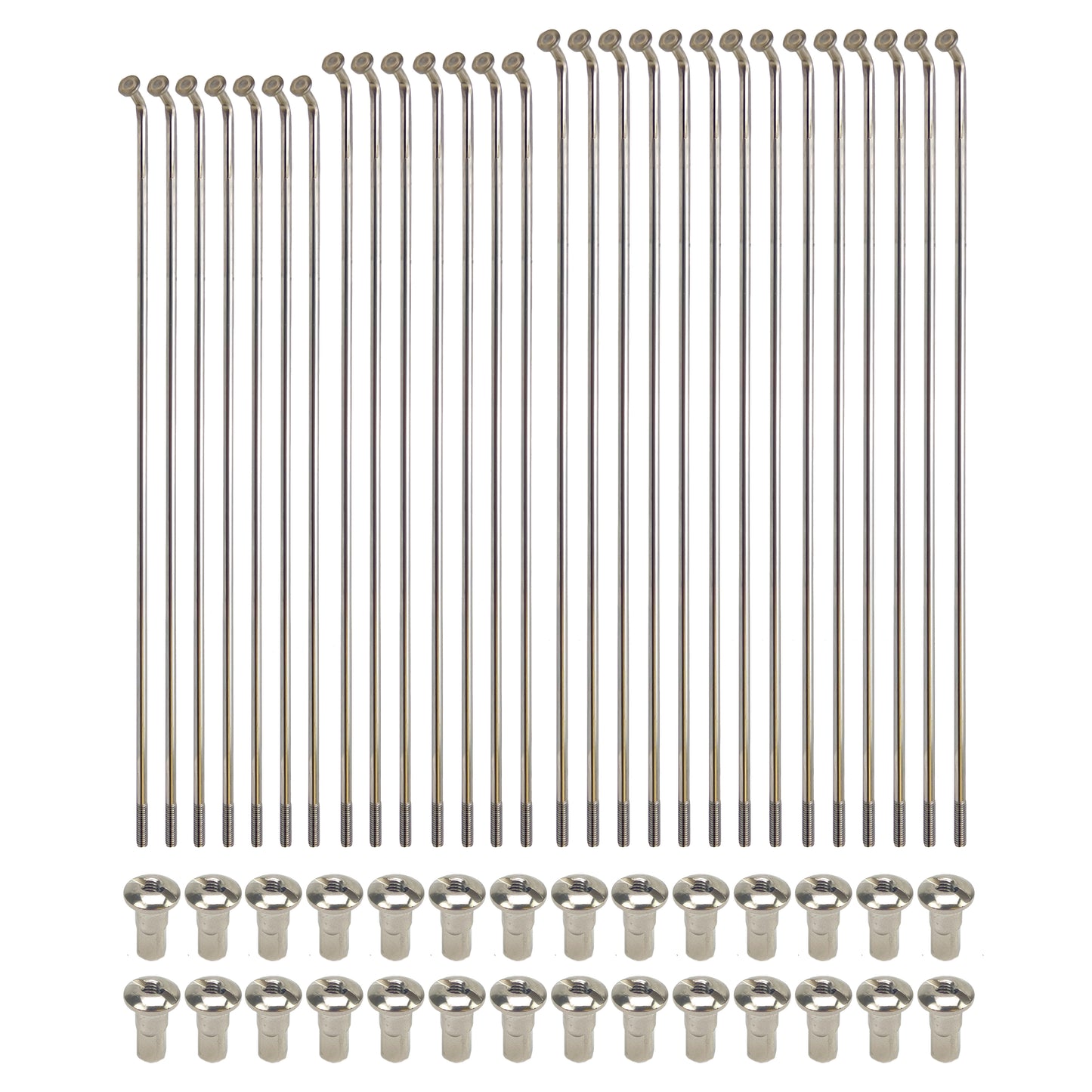

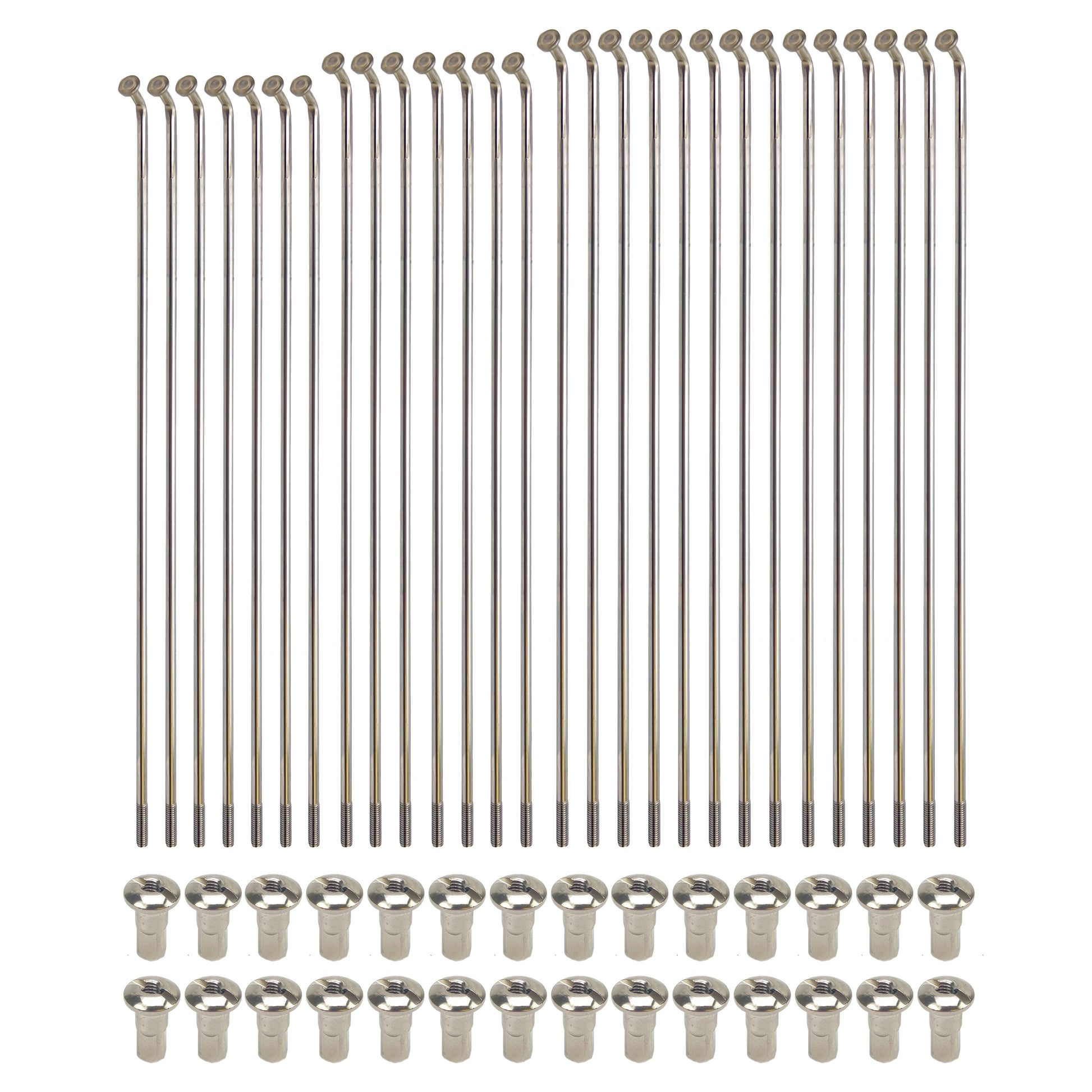

This spoke set has 28 spokes with nickel plated steel nipples.

Part No. 85-667 (phoenixmotos.com)

Cross Reference Numbers Only:
Spoke size: 7 of 3,2x171 mm. This is the outer spoke of the sprocket side. OEM Ref. 41030-1151.
Spoke size 7 of 3,2x175 mm. This is the inner spoke of the sprocket side. OEM Ref. 41030-1161.
Spoke size: 14 pcs. 3,2x179 mm. This is the spokes on the disc side. OEM Ref. 41029-1278.

Nipple size: 6,4x17 mm. If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
