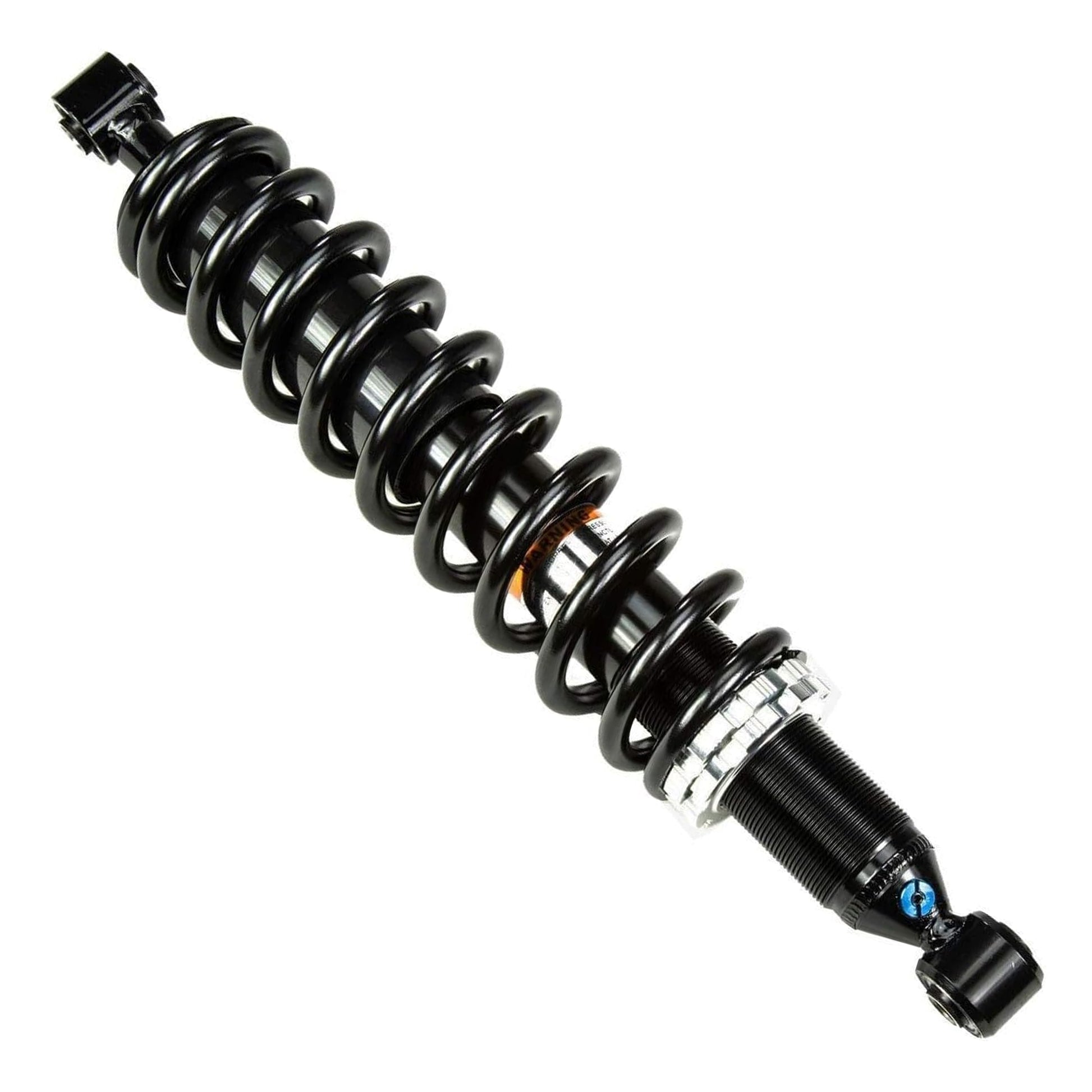

SHOCK REAR YAMAHA KODIAK 700, BRONCO AU-04460, 2SM-F2210-00-00

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

FITMENT

• YAMAHA KODIAK 700 (2016-2020)

SPECIFICATIONS

• Position Top Hole I.D (mm): 12
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 12
• Bottom Eyelet Width (mm): 30
• Tube O.D (mm): 38
• Stroke (mm): 80.6
• Spring O.D (mm): 71
• Spring Wire Diameter (mm): 9.5
• Spring Rate (lbs/inch): 218
• Spring Rate (kg/mm): 3.9
• Center to Center (mm): 405
• Center to Center (inches): 16
