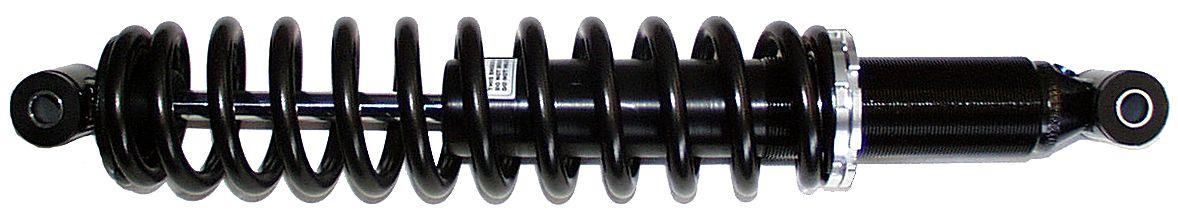

SHOCK REAR YAMAHA KODIAK 400 450, BRONCO AU-04403 ATV 03-04

Bronco gas shocks provide long-term consistent performance compared to stock oil-only damped shocks. They feature:

• 10% Stiffer Springs: Enhance ride quality and increase load capacity.
• Compatibility: Ideal for use on the front when installing a snow plow.
• Aesthetic: Smooth black color that blends seamlessly with any OEM ATV.
• Direct Bolt-On Replacement: Comes with pre-installed spring for easy mounting right out of the box.
• Sold Individually: Includes one shock, complete with spring and spring retainers.

FITMENT:

Yamaha:

• Kodiak 400 (2003-2004)
• Kodiak 450 (2003-2004)

SPECIFICATIONS:

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 40
• Bottom Hole I.D (mm): 12
• Bottom Eyelet Width (mm): 45
• Tube O.D (mm): 39
• Stroke (mm): 125
• Spring O.D (mm): 75
• Spring Wire Diameter (mm): 9.5
• Center to Center (mm): 445
• Center to Center (in): 17.5

Part No.: 29-555.EA (available at phoenixmotos.com)
Bronco Rear Shock Model: 04403
