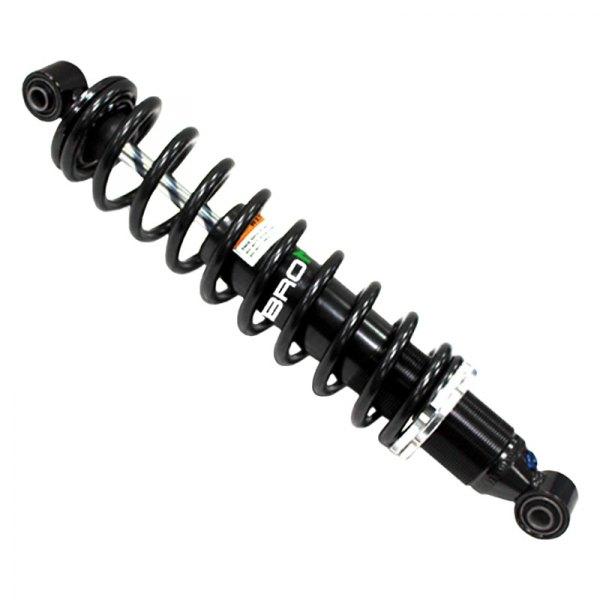

SHOCK REAR YAMAHA GRIZZLY 700 14-20, BRONCO AU-04449, GRIZZLY 700

Upgrade your ATV's suspension with Bronco Heavy Duty Gas Shocks, designed for long-lasting, consistent performance. These shocks offer a substantial improvement over stock oil-only damped shocks, providing a smoother ride and greater load-bearing capacity. Whether you're plowing snow or carrying additional gear, these shocks ensure optimal support for your vehicle.

Key Features:

• 10% Stiffer Springs: Offers a smoother, more stable ride and increases the load capacity of your ATV.
• Snow Plow Ready: Ideal for the front of your ATV when installing a snow plow, giving you the support you need for extra weight.
• Sleek Black Finish: Matches the OEM style of your Yamaha ATV for a clean, professional look.
• Direct Bolt-On Replacement: Pre-installed spring for quick, hassle-free installation with no additional adjustments needed.
• Sold Individually: Includes one shock, spring, and spring retainers for each shock.

Yamaha Fitment:

• Yamaha Grizzly 700 4WD (2014-2015)
• Yamaha Grizzly 700 EPS/AWD (2016-2020)

Specifications:

• Top Hole I.D: 10 mm
• Top Eyelet Width: 32 mm
• Bottom Hole I.D: 10 mm
• Bottom Eyelet Width: 30 mm
• Tube O.D: 38 mm
• Stroke: TBA (To Be Announced)
• Spring O.D: 78 mm
• Spring Wire Diameter: 9.7 mm
• Spring Rate (lbs/inch): 168/269
• Spring Rate (kg/mm): 3.0/4.8
• Center to Center: 448 mm (17 2/3 inches)
