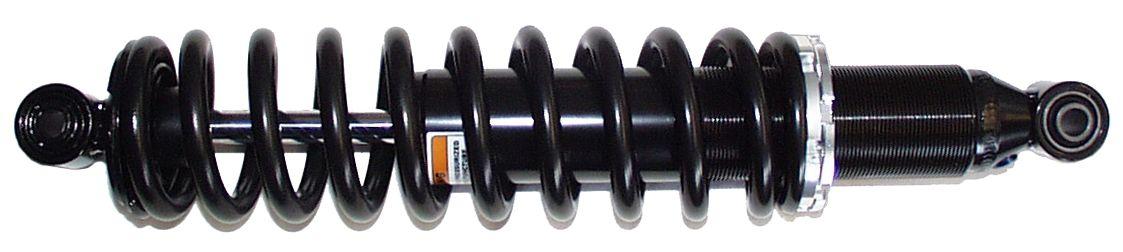

SHOCK REAR GRIZZLY YFM660 02-8, BRONCO AU-04404 ATV YAMAHA

Bronco gas shocks provide long-term consistent performance compared to stock oil-only damped shocks. Key features include:

• 10% Stiffer Springs: Offers a better ride quality and increased load capacity.
• Versatile Application: Ideal for use on the front when installing a snow plow.
• Aesthetic Appeal: Smooth black color blends perfectly with any OEM ATV design.
• Direct Bolt-On Replacement: Pre-installed spring means the shock is ready to mount right out of the box.
• Sold Individually: Each purchase includes one shock, complete with spring and spring retainers.

FITMENT:

Yamaha:

• YFM660 Grizzly (2002 - 2008)

SPECIFICATIONS:

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 30
• Tube O.D (mm): 39
• Stroke (mm): 84
• Spring O.D (mm): 72
• Spring Wire Diameter (mm): 9.5
• Center to Center (mm): 371
• Center to Center (in): 14.6

Part No.: 29-556.EA (available at phoenixmotos.com)
Bronco Rear Shock Model: 0440
