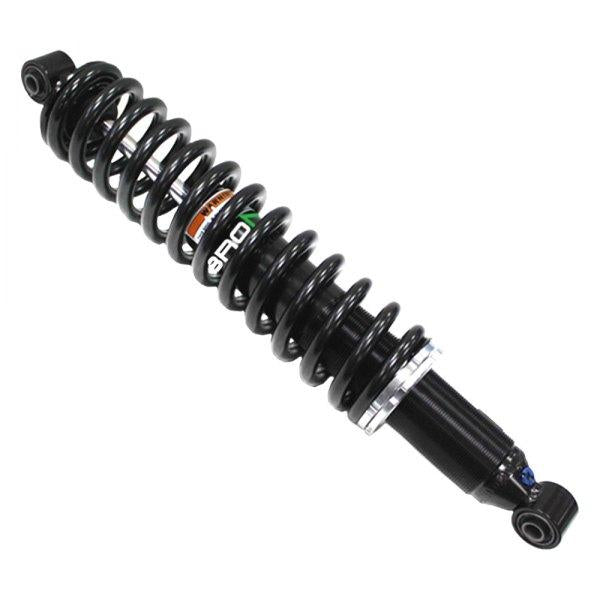

SHOCK REAR Grizzly 550 700 4WD 09-14, BRONCO AU-04405 ATV YAMAHA

Description:

• Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
• 10% stiffer springs provide a better ride and higher load capacity.
• Works great on the front when installing a snow plow.
• Smooth black color blends perfectly with any OEM ATV.
• Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
• Sold individually - Includes one shock, with spring, and spring retainers.

FITMENT:

• YAMAHA GRIZZLY 550 4WD 2009-14
• YAMAHA GRIZZLY 700 4WD 2007-13

SPECIFICATIONS:

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 30
• TUBE O.D MM: 39
• STROKE MM: 98
• SPRING OD MM: 72
• SPRING WIRE DIAMETER MM: 9 4/5
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 408
• CENTER TO CENTER IN: 16
