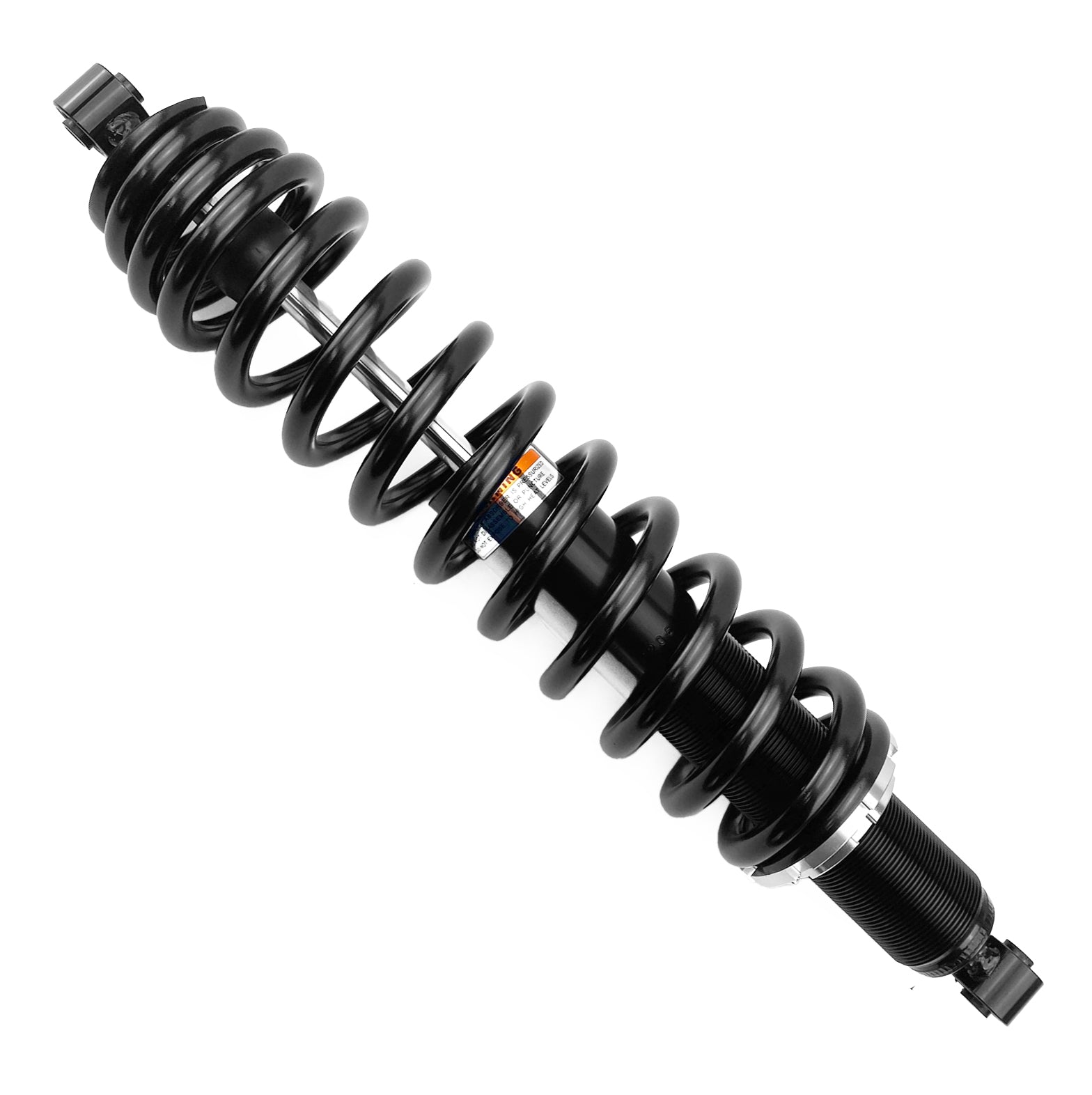

SHOCK REAR CAN AM UTV TRAXTER HD10 2020, BRONCO AU-04466, 706003473

• Brand: Bronco
• Model: Heavy Duty Gas Shocks
• Part Number: AU-04466

Features:

• Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
• 10% stiffer springs provide a better ride and higher load capacity.
• Works great on the front when installing a snow plow.
• Smooth black color blends perfectly with any OEM ATV.
• Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
• Sold individually - Includes one shock, with spring, and spring retainers.

CAN-AM Fitment:

• TRAXTER HD10 T1B/BASE/DPS/XT/PRO: 2020
• TRAXTER HD10 MAX: 2020

Specifications:

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 32
• Tube O.D (mm): 57
• Stroke (mm): 165
• Spring OD (mm): 98
• Spring Wire Diameter (mm): 13
• Spring Rate (lbs/inch): -
• Spring Rate (kg/mm): -
• Center to Center (mm): 530
• Center to Center (in): 20 6/7
