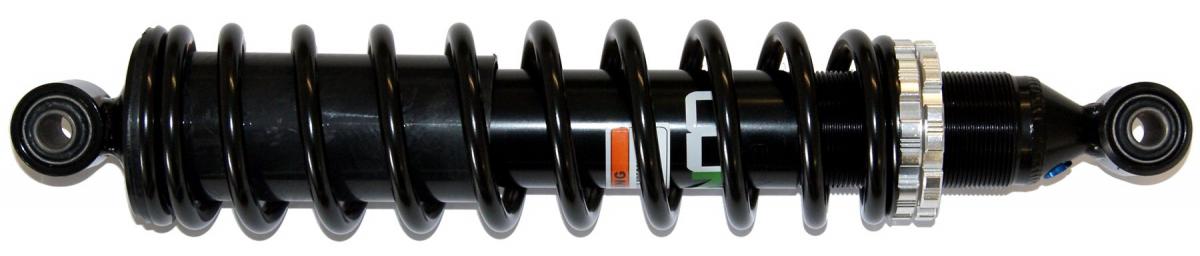

SHOCK FRONT YFM450 Grizzly 450 11-14, BRONCO AU-04319 1CT-F3350-00

• YAMAHA YFM450 GRIZZLY 2011-2014


SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 38
• STROKE MM: 91.5

• SPRING OD MM: 66.5

• SPRING WIRE DIAMETER MM: 7 1/2

• SPRING RATE LBS/INCH: -

• SPRING RATE KG/MM: -

• CENTER TO CENTER MM: 347

• CENTER TO CENTER IN: 13 2/3


Part No. 29-5784 (phoenixmotos.com)
BRONCO Front Heavy Duty Gas Shock
Put them on the front to better support snow plow or on rear when hauling heavy cargo. Same specs as OEM, but come standard with 10% stiffersprings. Includes: spring and retainer. Polaris models also include bumper. Direct bolt on replacement.
Cross reference numbers ONLY. 1CT-F3350-00-00
