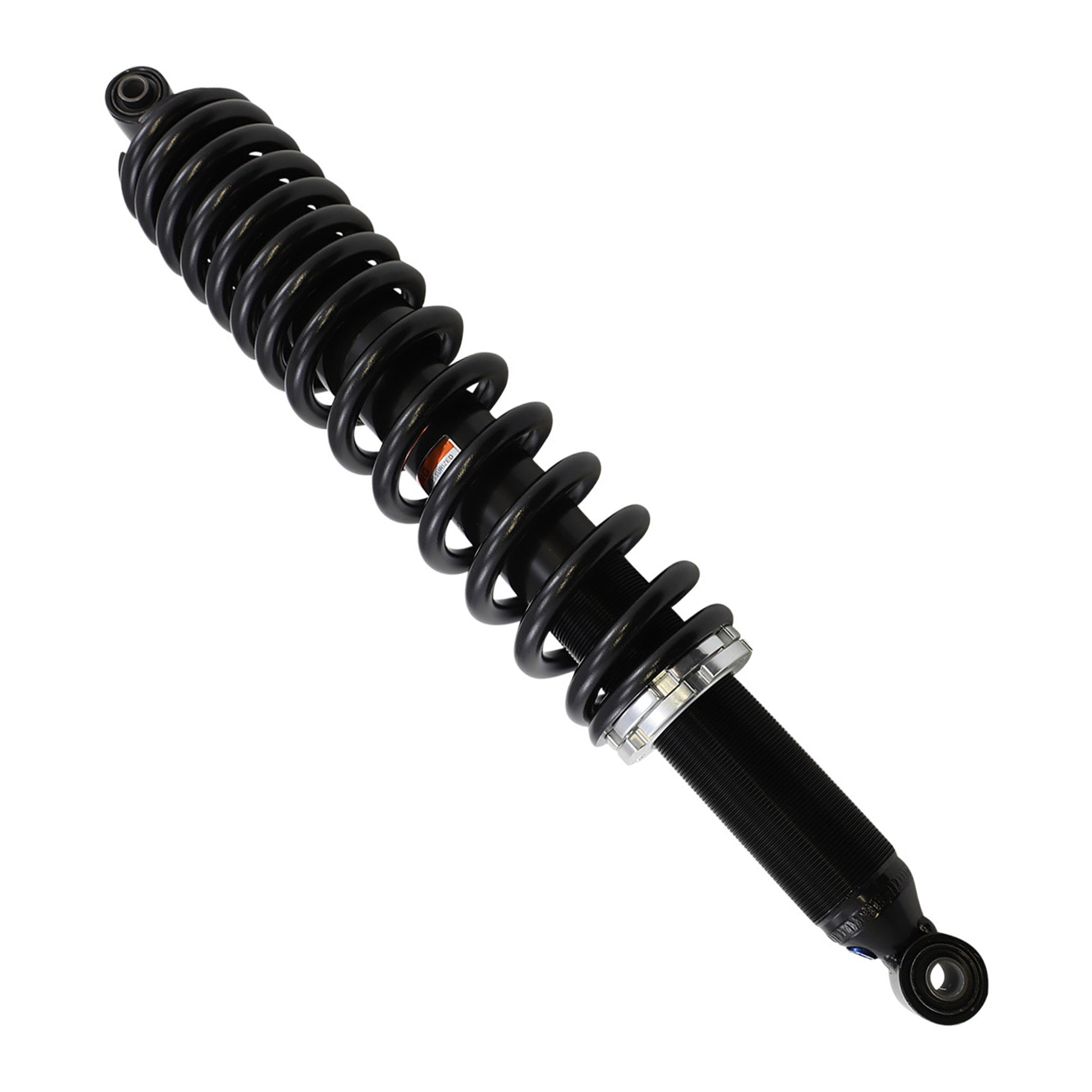

SHOCK FRONT HONDA PIONEER, BRONCO AU-04346, UTV, 51400-HL3-A02, 51400-HL3-A41

These Bronco Heavy Duty Gas Shocks are designed to offer long-lasting, consistent performance compared to stock oil-only damped shocks. They come with 10% stiffer springs for a better ride and enhanced load capacity, making them perfect for added tasks like installing snow plows.

• 10% Stiffer Springs: Offers a more comfortable ride and improves load capacity.
• Ideal for Snow Plows: Provides added front suspension support when installing additional front-end accessories like snow plows.
• Sleek Black Color: Matches OEM ATV and UTV models for a smooth, factory look.
• Direct Bolt-On Replacement: Pre-installed spring means easy installation and quick setup right out of the box.
• Sold Individually: Each shock includes a spring and spring retainers.

HONDA FITMENT:

• PIONEER 700 (2014)
• PIONEER 700 (2015 - 2020)
• PIONEER 700-4 (2015 - 2020)

SPECIFICATIONS:

• Position Top Hole I.D: 10 mm
• Top Eyelet Width: 32 mm
• Bottom Hole I.D: 10 mm
• Bottom Eyelet Width: 32 mm
• Tube O.D: 39 mm
• Stroke: TBA (To Be Announced)
• Spring O.D: 80 mm
• Spring Wire Diameter: 11 mm
• Spring Rate: 112 lbs/inch
• Spring Rate: 2.0 kg/mm
• Center to Center: 486 mm (19 1/7 inches)

Part No. 29-5808

Cross-Reference Numbers:

• 51400-HL3-A02
• 51400-HL3-A4

These Bronco Gas Shocks will improve the ride quality and provide the extra support your Honda Pioneer 700 or Pioneer 700-4 needs, especially when carrying heavy loads or adding accessories. They are built to last and offer an easy upgrade from factory shocks.
