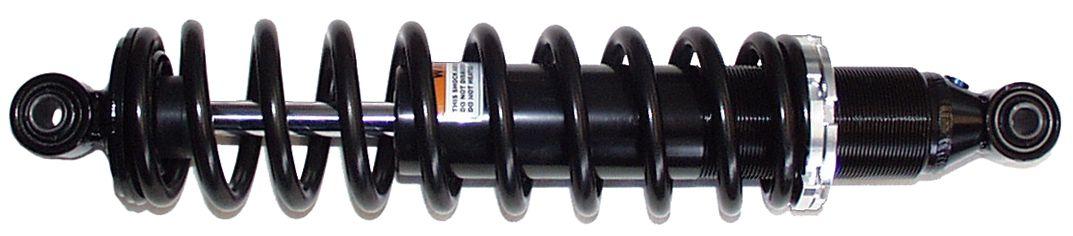

SHOCK FRONT Grizzly 700 07-11, BRONCO AU-04305 ATV YAMAHA

• YAMAHA GRIZZLY 700 2007-2011


SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 30

• TUBE O.D MM: 39
• STROKE MM: 87

• SPRING OD MM: 70

• SPRING WIRE DIAMETER MM: 8 1/3

• SPRING RATE LBS/INCH: -

• SPRING RATE KG/MM: -

• CENTER TO CENTER MM: 358

• CENTER TO CENTER IN: 14


Part No. 29-553.EA (phoenixmotos.com)
Bronco Front Shock AU-04305
