Wiseco Piston Ring Set 72.00 mm for Beta RR300 2013–2021 2835CD

Wiseco 2835CD is a piston ring set for a 72.00 mm bore.

Use with the compatible Wiseco piston or assembly configuration. The application list does not establish compatibility with an original equipment piston.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 2835CD
• Bore Diameter: 72.00 MM
• Top Compression Ring Thickness: 1.0 MM
• Second Compression Ring Thickness: 1.0 MM

Application notes

• Honda CR250 R 1978–1980: 2205CMD rings required for standard Chrome Bore.
• Husqvarna CR250 1998–2013, Husqvarna TE300 2014–2016: Cylinder, cylinder head, and powervalve.
• Husqvarna CR250 1998–2013, Husqvarna TE300 2014–2016: modifications required.
• Kawasaki KX250 1993–2008: Cylinder, cylinder.
• Kawasaki KX250 1993–2008: head, and powervalve modifications required.
• KTM 250 SX 2003–2016: Cylinder, cylinder.
• KTM 250 SX 2003–2016: head, and powervalve modifications required.
• Suzuki RM250 2003–2012: Cylinder, cylinder.
• Suzuki RM250 2003–2012: head, and powervalve modifications required.
• Yamaha YZ250 1999–2024: Cylinder, cylinder.
• Yamaha YZ250 1999–2024: head, and powervalve modifications required.
• Suzuki LT250 R Quadracer 1985–1986: Retain the original thrust washers.
• Suzuki T500/Titan 1969–1975: Requires 2 Suzuki Part # 09169-18001.
• Suzuki T500/Titan 1969–1975: piston pin thrust washers per piston.
• Suzuki GT750 1972–1977: 1972 "j" and 1973 "K" models will.
• Suzuki GT750 1972–1977: require 2 Suzuki Part #09169-18001.
• Suzuki GT750 1972–1977: wristpin thrust washers per piston.

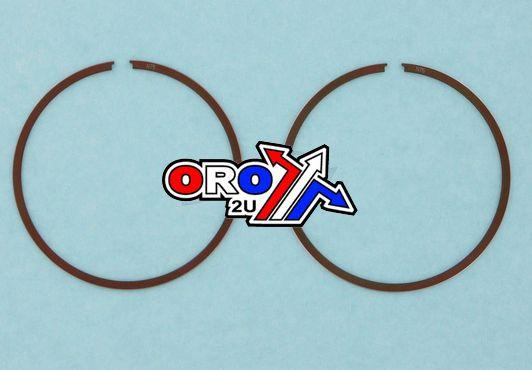

Manufacturer photograph for this reference. Packaging presentation may change.
