Wiseco

Wiseco Piston Ring Set 56.00 mm for Honda MT125 1973–1978 2205CD

Wiseco Piston Ring Set 56.00 mm for Honda MT125 1973–1978 2205CD

£49.30 GBP
£49.30 GBP
Sale Sold out
Taxes included.

Wiseco 2205CD is a piston ring set for a 56.00 mm bore.

Use with the compatible Wiseco piston or assembly configuration. The application list does not establish compatibility with an original equipment piston.

Wiseco catalogue applications

Make Model Years
Honda MT125 1973–1978
Honda CR125 1973–1978
Honda CR125 R 1980–1986
Kawasaki KX125 1982–1985
Kawasaki KX125 1989
Suzuki DS125 1979–1981
Suzuki TS125 1979–1981
Suzuki TC125 1970–1978
Suzuki RV125 1973–1977
Suzuki RM125 1977–1986
Yamaha AT2125 1972–1973
Yamaha AT3125 1972–1973
Yamaha DT125 1973–1981
Yamaha IT125 1980–1981
Yamaha MX125 1974–1976
Yamaha TZR125 1987–1992
Yamaha DT R125 1988–1996
Yamaha DT R125E 1990–1996
Yamaha TDR125 1990–1992
Yamaha TDR240 1988–1992
Yamaha YT125 1980–1985
Aprilia Planet125 1990–1991
Aprilia Mito125 1990–1991
Suzuki RGV250 1989–1995
Yamaha DTR125 1988–1996
Yamaha DTR125 E 1990–1996

Specifications

  • Manufacturer part number: 2205CD
  • Bore Diameter: 56.00 MM
  • Top Compression Ring Thickness: 1.0 MM
  • Second Compression Ring Thickness: 1.0 MM

Application notes

  • Yamaha TZR125 1987–1992, Yamaha DT R125 1988–1996, Yamaha DT R125E 1990–1996, Yamaha TDR125 1990–1992, Yamaha TDR240 1988–1992: Includes Reed Cutout on piston.
  • Yamaha TZR125 1987–1992, Yamaha DT R125 1988–1996, Yamaha DT R125E 1990–1996, Yamaha TDR125 1990–1992, Yamaha TDR240 1988–1992: International bore specification. The catalogue excludes US availability.

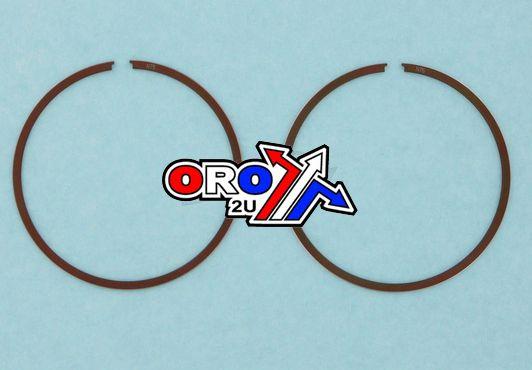

Manufacturer photograph for this reference. Packaging presentation may change.
