Wiseco
Wiseco Piston Ring Set 48.50 mm for Honda CR85 R 2003–2007 1909CS
Wiseco Piston Ring Set 48.50 mm for Honda CR85 R 2003–2007 1909CS
Regular price
£24.67 GBP
Regular price
Sale price
£24.67 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Wiseco 1909CS is a piston ring set for a 48.50 mm bore.
Use with the compatible Wiseco piston or assembly configuration. The application list does not establish compatibility with an original equipment piston.
Wiseco catalogue applications
| Make | Model | Years |
|---|---|---|
| Honda | CR85 R | 2003–2007 |
| Kawasaki | KX85 | 2001–2024 |
| Suzuki | RM80 | 1989–2001 |
| Suzuki | RM85 | 2002–2023 |
| Yamaha | MX80 | 1980–1982 |
| Yamaha | YT80 | 1974–1975 |
| Yamaha | GT1 | 1973–1975 |
| Yamaha | YZ80 | 1974–1975 |
| Yamaha | YZ80 | 1985–2001 |
| Yamaha | YZ85 | 2002–2024 |
Specifications
- Manufacturer part number: 1909CS
- Bore Diameter: 48.50 MM
- Top Compression Ring Thickness: 1.0 MM
Application notes
- Suzuki RM80 1991–2001: At bores of 48 mm or above, modify the power valve before fitting.
- Suzuki RM85 2002–2023: Provide crankcase clearance for bores of 50 mm or above.

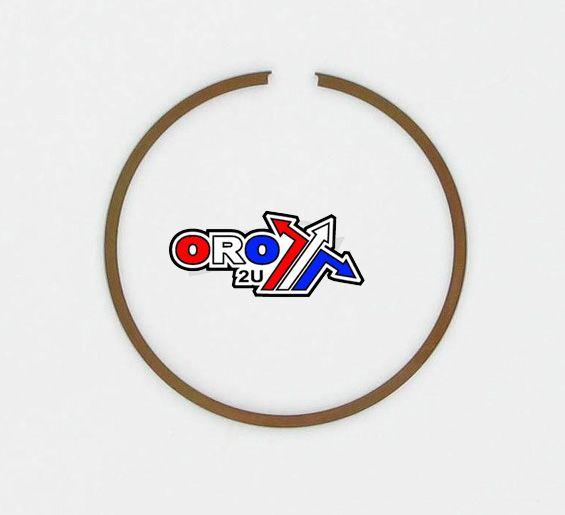

Manufacturer photograph for this reference. Packaging presentation may change.
