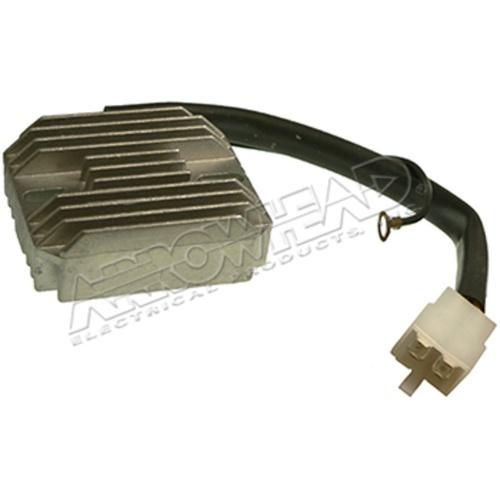

REGULATOR VOLTAGE 32800-45210, SUZUKI GS750/850/1000/1100, ASU6010 ROAD KL20-5256
REGULATOR VOLTAGE 32800-45210, SUZUKI GS750/850/1000/1100, ASU6010 ROAD KL20-5256
Couldn't load pickup availability
SUZUKI
GS750E 748cc 1980-82,
GS750L 748cc 1980-81,
GS750S Katana 748cc 1983,
GS850G 843cc 1980-81,
GS850GL 843cc 1980-81,
GS1000E 997cc 1980-81,
GS1000G 997cc 1980-81,
GS1000GL 997cc 1980-81,
GS1000S 997cc 1980,
GS1100E 1074cc 1980-81,
GS1100S Katana 1074cc 1983,
GS L 550cc de 1980 a 1982 GS G / GL 1000cc de 1980 a 1981 GS GT / GX 1000cc 1996 GS T 550cc 1981 GS G 850cc 1979 GS GT 850cc 1996 GS 425cc 1992 GS L 450cc 1996 GS 850cc 1986 GS T 250cc de 1980 a 1981 GS E 650cc de 1981 a 1982 GS TX 250cc 1999 GS 550cc de 1979 a 1980 GS 1100cc de 1980 a 1981 GS S 1100cc 1983 GS T 450cc 1996 GS E 500cc de 1982 a 1983 GS E 425cc 1979 GS L 450cc 1982 GS T 750cc de 1982 a 1983 GS E / S 1000cc 1980 GS 750cc de 1980 a 1981 GS L 750cc 1979 GS E 1100 ccde 1980 a 1981 GS TT 250cc 1996 GS L 450cc de 1980 a 1982 GS L 450cc 1999 GS GX 850cc 1999 GS E 750 1982 GS G / GL 850ccde 1980 a 1981 GS G / GL 1000cc de 1980 a 1981 GS S 750cc 1983 GS E 450cc de 1980 a 1982 GS T / TX 450cc de 1981 a 1982 GS EX 550cc 1981 GS 1000cc 1996 GS GL 850cc de 1982 a 1983 GS M 550cc de 1981 a 1982 GS S 1000cc 1982 GS GL 850cc de 1982 a 1983 GS S 450cc de 1980 a 1982 GSX 400cc 1999 GSX 750cc 1981 GSX 1100cc de 1980 a 1981 GSX 750cc 1996 GSX S 750cc de 1982 a 1983 GSX S 1000cc 1982 GSX 750cc 1999 GSX 400cc 1996 GSX 750cc de 1982 a 1983
W,
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 25 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 70 [mm] |
| Largo (length) | 80 [mm] |
| Entre centro (pitch) | 60 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Reemplazo | Shindengen | SH590A-13 | |||
| Suzuki | - | 32800-49X50 | |||
| Suzuki | - | 32800-47121 | |||
| Suzuki | GS | L | 550 | from 1980 to 1982 | 32800-47020 |
| Suzuki | GS | G / GL | 1000 | from 1980 to 1981 | 32800-45240 |
| Suzuki | GS | GT / GX | 1000 | 1996 | 32800-45240 |
| Suzuki | GS | T | 550 | 1981 | 32800-47020 |
| Suzuki | GS | G | 850 | 1979 | 32800-45110 |
| Suzuki | GS | GT | 850 | 1996 | 32800-45210 |
| Suzuki | GS | 425 | 1992 | 32800-44030 | |
| Suzuki | GS | L | 450 | 1996 | 32800-44120 |
| Suzuki | GS | 850 | 1986 | 32800-45110 | |
| Suzuki | GS | T | 250 | from 1980 to 1981 | 32800-44040 |
| Suzuki | GS | E | 650 | from 1981 to 1982 | 32800-47020 |
| Suzuki | GS | TX | 250 | 1999 | 32800-44040 |
| Suzuki | GS | 550 | from 1979 to 1980 | 32800-44040 | |
| Suzuki | GS | 1100 | from 1980 to 1981 | 32800-45210 | |
| Suzuki | GS | S | 1100 | 1983 | 32800-49320 |
| Suzuki | GS | T | 450 | 1996 | 32800-44040 |
| Suzuki | GS | E | 500 | from 1982 to 1983 | 32800-47120 |
| Suzuki | GS | E | 425 | 1979 | 32800-44030 |
| Suzuki | GS | L | 450 | 1982 | 32800-44120 |
| Suzuki | GS | T | 750 | from 1982 to 1983 | 32800-47120 |
| Suzuki | GS | E / S | 1000 | 1980 | 32800-45210 |
| Suzuki | GS | 750 | from 1980 to 1981 | 32800-45210 | |
| Suzuki | GS | L | 750 | 1979 | 32800-45110 |
| Suzuki | GS | E | 1100 | from 1980 to 1981 | 32800-49310 |
| Suzuki | GS | TT | 250 | 1996 | 32800-44040 |
| Suzuki | GS | L | 450 | from 1980 to 1982 | 32800-44040 |
| Suzuki | GS | L | 450 | 1999 | 32800-44120 |
| Suzuki | GS | GX | 850 | 1999 | 32800-45210 |
| Suzuki | GS | E | 750 | 1982 | 32800-49140 |
| Suzuki | GS | G / GL | 850 | from 1980 to 1981 | 32800-45210 |
| Suzuki | GS | G / GL | 1000 | from 1980 to 1981 | 32800-49140 |
| Suzuki | GS | S | 750 | 1983 | 32800-49320 |
| Suzuki | GS | E | 450 | from 1980 to 1982 | 32800-44040 |
| Suzuki | GS | T / TX | 450 | from 1981 to 1982 | 32800-44120 |
| Suzuki | GS | EX | 550 | 1981 | 32800-47020 |
| Suzuki | GS | 1000 | 1996 | 32800-45210 | |
| Suzuki | GS | GL | 850 | from 1982 to 1983 | 32800-47120 |
| Suzuki | GS | M | 550 | from 1981 to 1982 | 32800-47020 |
| Suzuki | GS | S | 1000 | 1982 | 32800-45250 |
| Suzuki | GS | GL | 850 | from 1982 to 1983 | 32800-49310 |
| Suzuki | GS | S | 450 | from 1980 to 1982 | 32800-44040 |
| Suzuki | GSX | 400 | 1999 | 32800-44040 | |
| Suzuki | GSX | 750 | 1981 | 32800-45210 | |
| Suzuki | GSX | 1100 | from 1980 to 1981 | 32800-45210 | |
| Suzuki | GSX | 750 | 1996 | 32800-45210 | |
| Suzuki | GSX | S | 750 | from 1982 to 1983 | 32800-45250 |
| Suzuki | GSX | S | 1000 | 1982 | 32800-45250 |
| Suzuki | GSX | 750 | 1999 | 32800-45210 | |
| Suzuki | GSX | 400 | 1996 | 32800-44040 | |
| Suzuki | GSX | 750 | from 1982 to 1983 | 32800-49320 | |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-3870 (oro2u.com)
Voltage Regulator / Rectifier
Cross reference numbers ONLY.
32800-45210, 32800-49140, 32800-49320, 32800-49X50, 32800-45110, 32800-45210, 32800-49140, 32800-49310, KL 20- 5256, ASU6010 , 32800-49X50 32800-49X50 / 32800-47121 / 32800-47020 / 32800-45240 32800-45110 / 32800-45210 / 32800-44030 / 32800-44120 32800-44040 / 32800-47020 / 32800-49320 / 32800-44040 32800-47120 / 32800-49310 / 32800-44120 / 32800-45250 32800-45210 Reemplazo Shindengen SH590A-13
SIZE. 70mm L x 80mm W x 28mm H Hole Distance 60mm
3-Phase w/Sensor
