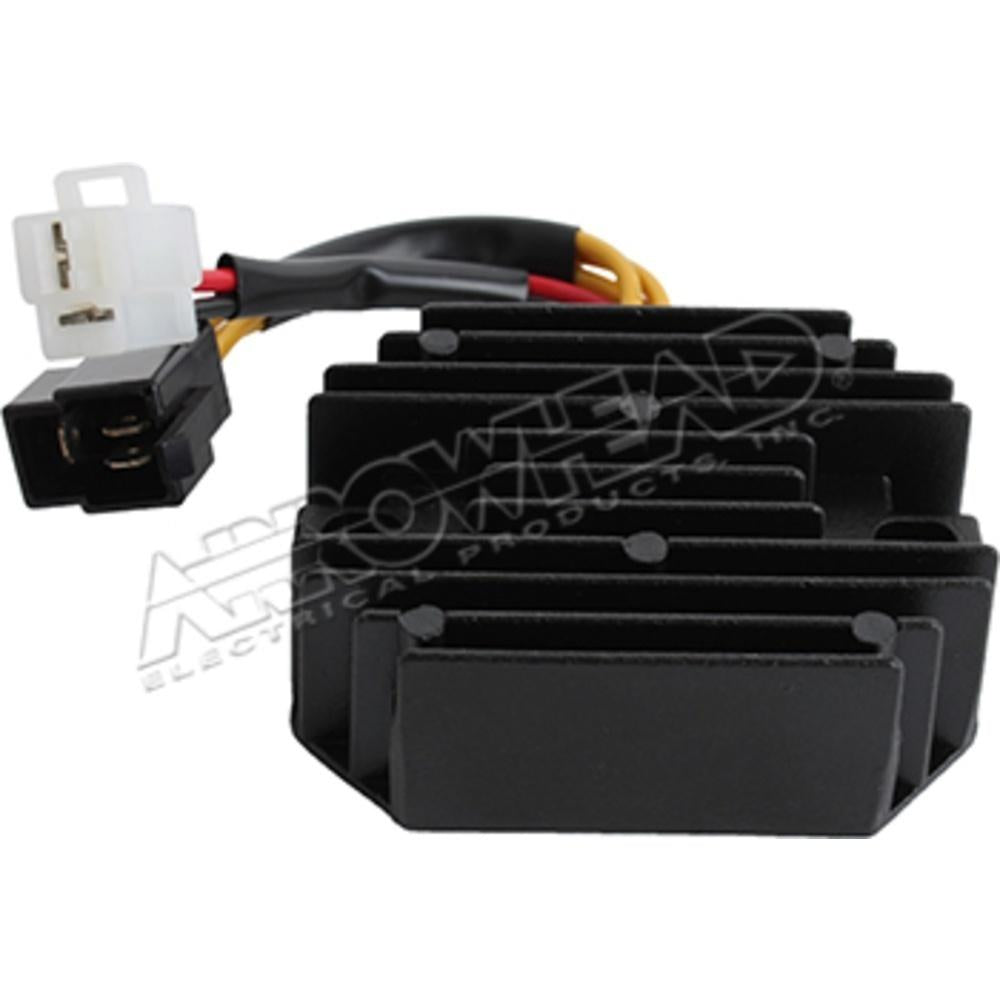

REGULATOR VOLTAGE 12V/35A 80mmX90mmX28mm 90-12 SUZUKI CAGIVA 250 350 650 DR SE LS SAVAGE LS BOULERVARD SV RAPTOR ASU6015 717835

Suzuki:

Compatible Models:

• DR SE 250cc (1990-1995)
• DR SE 350cc (1990-1996) / (1997-1999)
• LS Savage 650cc (1986 to 1988)
• LS Savage LS650P K1 K2 K3 650cc (1996 to 2004)
• LS Savage LS650P K4 650cc (1996-2004)
• LS Boulevard LS650 S40 650cc (2005 to 2012)
• SV 650cc (1999-2020)

Technical Information:

• Voltage: 12 [V]
• Current: 35 [A]
• Input Type: THREE PHASE
• Technology: SCR
• Output Type: DC
• Height: 28 [mm]
• Width: 80 [mm]
• Length: 90 [mm]
• Between center (pitch): 67 [mm]
• With sensor: NO

DZE Products that Apply:

• Brand: Cagiva

• Model: Abductor

• Version: 650

• Displacement: from 2001 to 2005

• Year: -

• OEM code: -

• Brand: Suzuki

• Model: DR

• Version: (Details not specified)

• Displacement: 350

• Year: from 1990 to 1996

• OEM code: 32800-14D10

• Brand: Suzuki

• Model: DR

• Version: (Details not specified)

• Displacement: 350

• Year: from 1997 to 1999

• OEM code: 32800-14D11

• Brand: Suzuki

• Model: DR

• Version: (Details not specified)

• Displacement: 250

• Year: from 1990 to 1995

• OEM code: 32800-14D10

• Brand: Suzuki

• Model: LS

• Version: Savage LS650

• Displacement: 650

• Year: 1995

• OEM code: 32800-24B00

• Brand: Suzuki

• Model: LS

• Version: Savage LS650P K1 K2 K3

• Displacement: 650

• Year: from 1996 to 2004

• OEM code: 32800-24B01

• Brand: Suzuki

• Model: LS

• Version: LS650 Boulevard

• Displacement: 650

• Year: from 2005 to 2012

• OEM code: 32800-24B11

• Brand: Suzuki

• Model: LS

• Version: Savage LS650P K4

• Displacement: 650

• Year: from 1996 to 2004

• OEM code: 32800-24B10

• Brand: Suzuki

• Model: LS

• Version: Savage LS650

• Displacement: 650

• Year: from 1986 to 1988

• OEM code: 32800-24B00

• Brand: Suzuki

• Model: SV

• Version: (Details not specified)

• Displacement: 650

• Year: from 1999 to 2002

• OEM code: 32800-24B01

Features:

• Meets or exceeds OEM quality.
• Direct OEM replacement.
• All products are factory tested for 100% reliability at the point of sale.
• Designed to handle increased power loads.
• DZE Racing products are high-quality replacement parts and carry a guarantee of your satisfaction.
• Please check the image and connection plugs before ordering to avoid mistakes.
• Note: No Returns on Electrical Parts.

Dimensions: 80mm L x 90mm W x 28mm H; Hole Distance: 67mm

Cross Reference Numbers Only:

• ASU6015 ARROWHEAD
• 230-58039 J & N
• 717835 HI LEVEL
• SH535C-12 SHINDENGEN
• 32800-24B00 SUZUKI
• 32800-24B01 SUZUKI
• 32800-24B10 SUZUKI
• 32800-24B11 SUZUKI
• 32800-24B11 / 32800-24B00 / 32800-14D10 / 32800-24B01 / 32800-24B10 / 32800-24B11 / 32800-14D11
