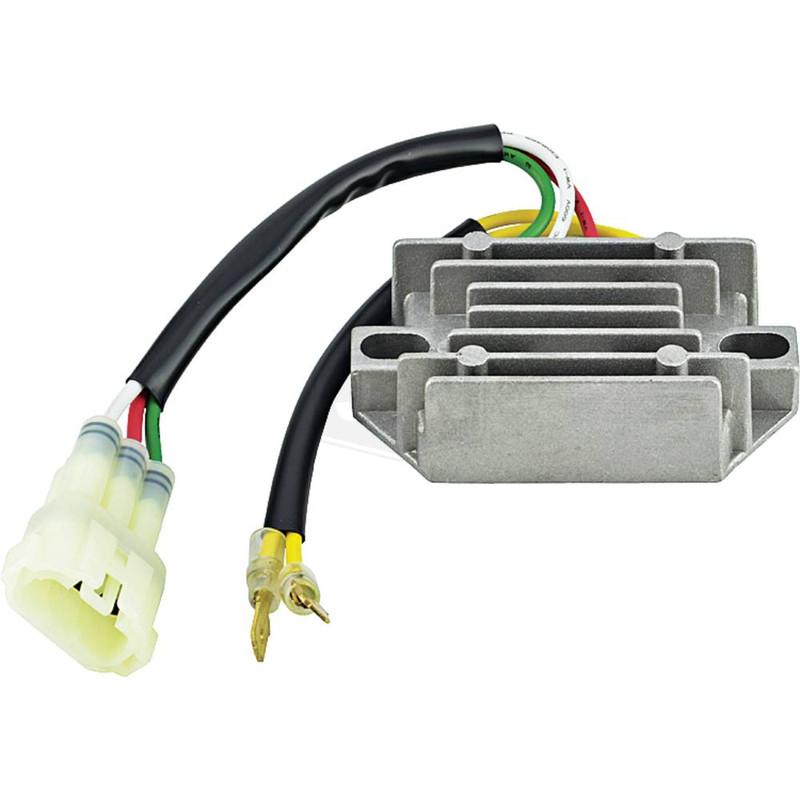

REGULATOR 12V KTM, ARROWHEAD 230-58226, 77211034000, 77311034000, KTM 450 SMR 2008 2009 2010 2012 2013 2014, 450 SX-F 2007 2008 2009 2010 20 011 2 012, 2013, 2014, 20

12V Regulator suitable for a wide range of KTM models, including SX-F, SMR, and XC-F variants. This high-quality replacement component ensures optimal voltage regulation and reliable performance, meeting or exceeding OEM standards.

Features:

• Meets or exceeds OEM quality standards.
• Direct OEM replacement for hassle-free installation.
• Compatible with stock mounting locations.
• Designed to handle increased power loads.
• Manufactured to match OEM appearance and specifications.
• Fully factory-tested for reliability.

Specifications:

• Voltage: 12V
• Polarity: Negative
• Adjustable: No
• Includes rectifier.
• Dimensions: 75mm (L) x 45mm (W) x 22mm (T)

Plug Connections:

• (1) Green, (1) White, (1) Red - 7 inches long.
• (2) Yellow with 6.4mm male spade connectors - 160mm long.
• Mounting Holes: (2) 6.4mm x 11.3mm slotted, on 53.3mm centers.

Cross-Reference OEM Part Numbers:

• REG 2569
• ARROWHEAD: 230-58226
• AKM6002
• KTM: 77211034000, 77311034000

Vehicle Compatibility:

• KTM 250 RC R: 2013-2014
• KTM 250 SX-F: 2011-2018
• KTM 250 SX-F Factory: 2015-2017
• KTM 250 XC-F: 2011-2018
• KTM 350 SX-F: 2011-2018
• KTM 350 XC-F: 2011-2017
• KTM 450 SMR: 2008-2014
• KTM 450 SX-F: 2007-2018
• KTM 450 SX-F Factory Edition: 2015-2018
• KTM 450 SXS-F: 2007-2008
• KTM 450 XC-F: 2008-2018
• KTM 505 SX-F: 2007-2008
• KTM 505 XC-F: 2008-2009

Assemblies Where Part Number 77311034000 Is Used:
Includes wiring harness assemblies for various KTM SX-F, SMR, and XC-F models across years 2007-2022.

Part Number: 44-0492.AH (superseded from 44-4727.DZE)
