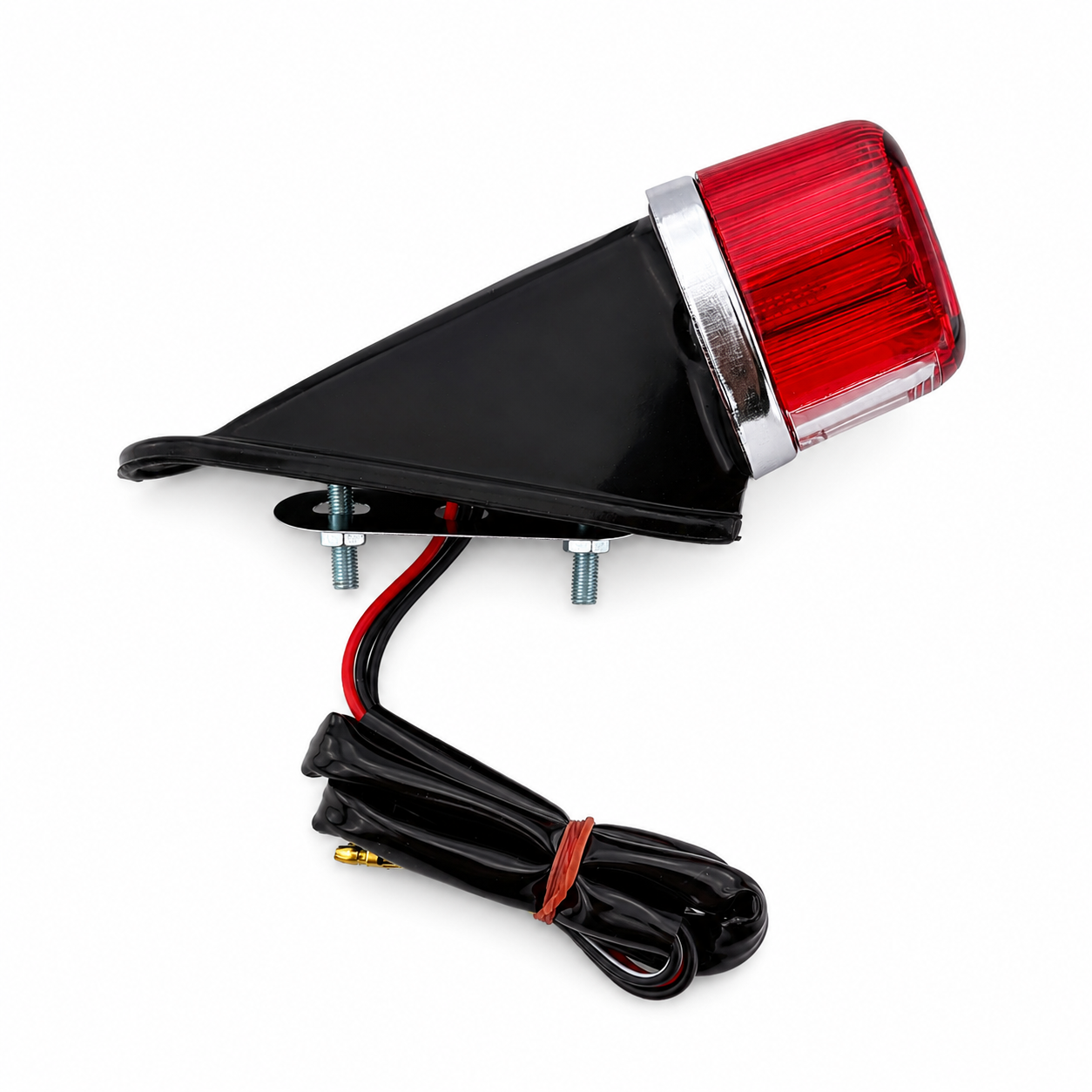

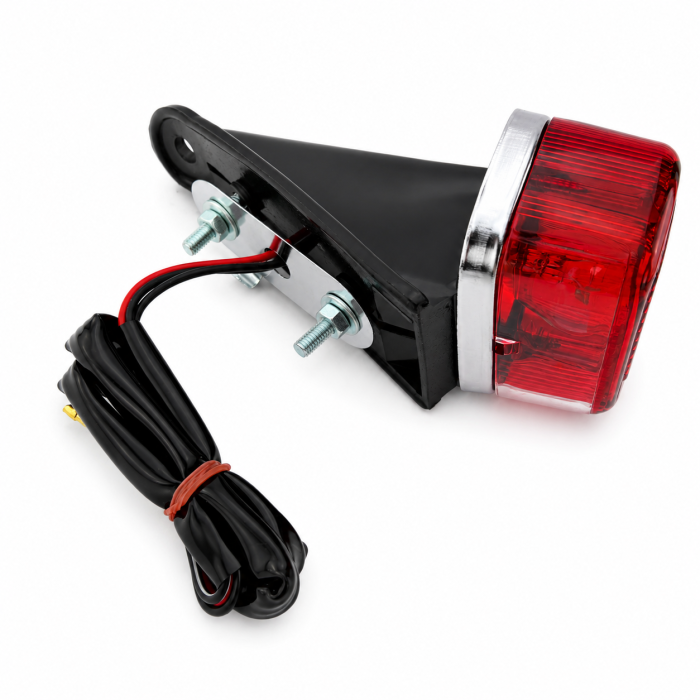

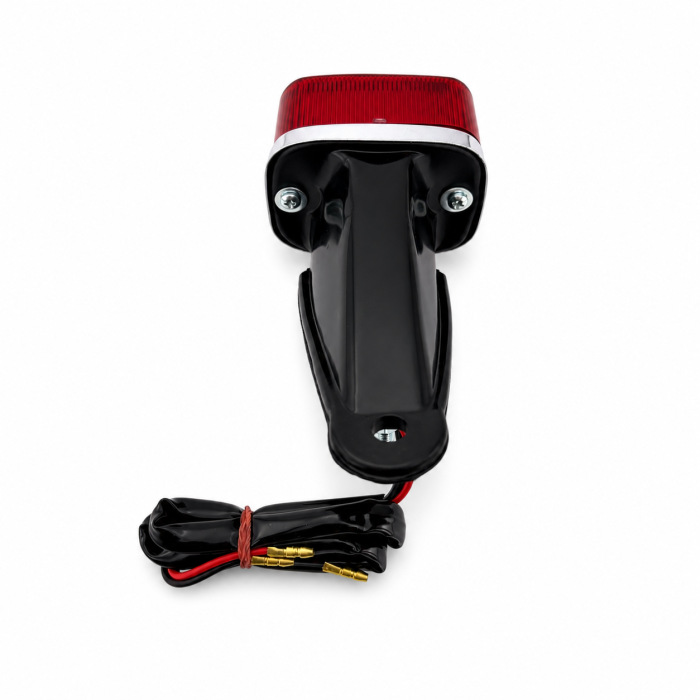

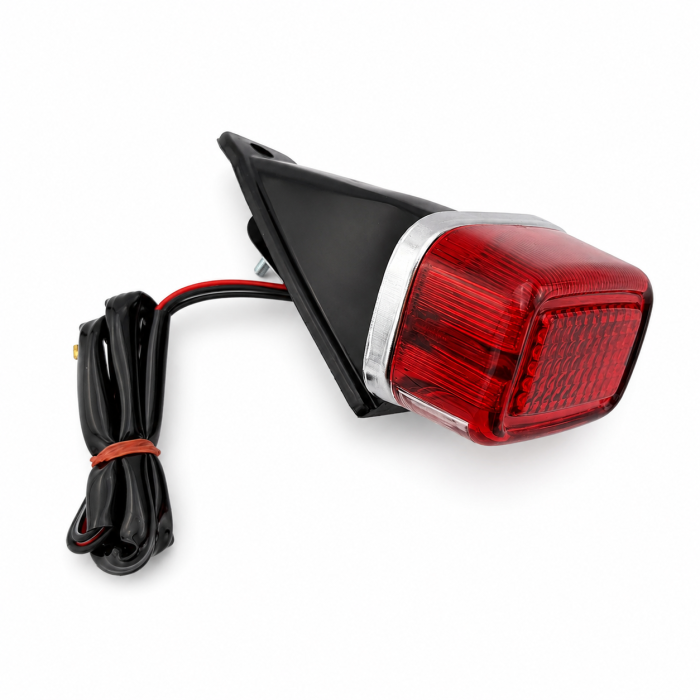

REAR TAIL LIGHT ASSEMBLY YAMAHA TY DT IT TT 125 175 200 350 400 465 434-84500-64-00

Rubber rear tail light assembly from Factory Image Racing for Yamaha trials, trail and enduro motorcycles, supplied as a Stanley-style replica rear lamp for replacing the original tail light unit on classic off-road models. It is designed as a stop and tail light assembly and is also suitable for universal fitment on other off-road motorcycles where the dimensions and mounting arrangement match.

Features

• Replica of the Stanley tail light fitted as standard equipment to Yamaha TY250 Twinshock models
• Suitable for Yamaha TY, DT, IT and TT off-road motorcycle applications
• Universal fitment option for other off-road motorcycles
• Supplied complete with bulb, mounting bracket and wiring
• Stop and tail light function
• Matches the original equipment appearance
• Made to OEM-style specifications
• Image should be checked before ordering to confirm suitability

Specifications

• Overall length: 138 mm
• Lamp height: 50 mm
• Lamp width: 68 mm
• Mounting stud centres: 48 mm
• Supplied bulb voltage: 6 V
• 12 V bulb available on request
• Bulb type: stop and tail bulb

Cross-Reference OEM Part Numbers

• 44-741.DR
• L15-110
• 434-84500-64-00
• 434-84511-63-00

Vehicle Fitments

• Yamaha TY250: 1974
• Yamaha TY125
• Yamaha TY175
• Yamaha TY250 Twinshock
• Yamaha TY250R
• Yamaha TY250S
• Yamaha TY350
• Yamaha DT250
• Yamaha DT175
• Yamaha IT125
• Yamaha IT175
• Yamaha IT200
• Yamaha IT250
• Yamaha IT400
• Yamaha IT425
• Yamaha IT465
• Yamaha TT500
• Yamaha TT600
