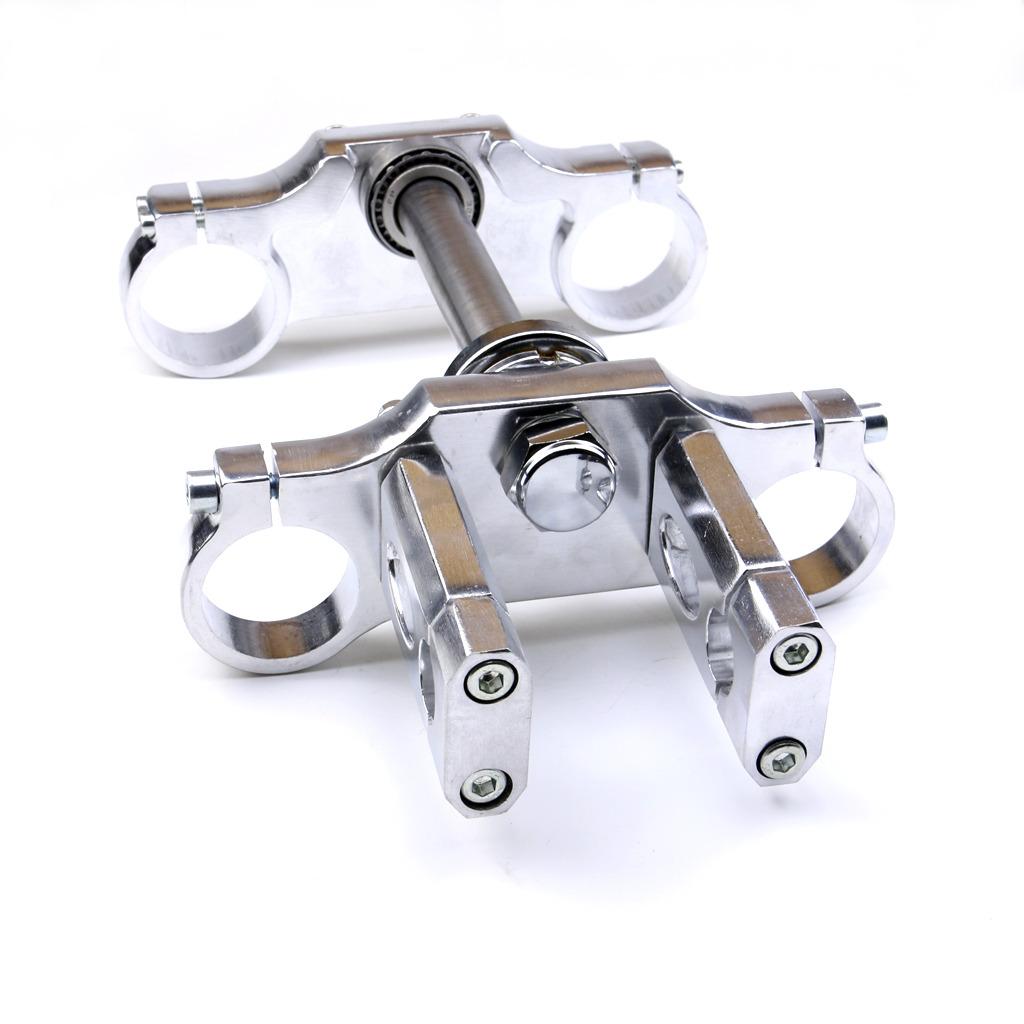

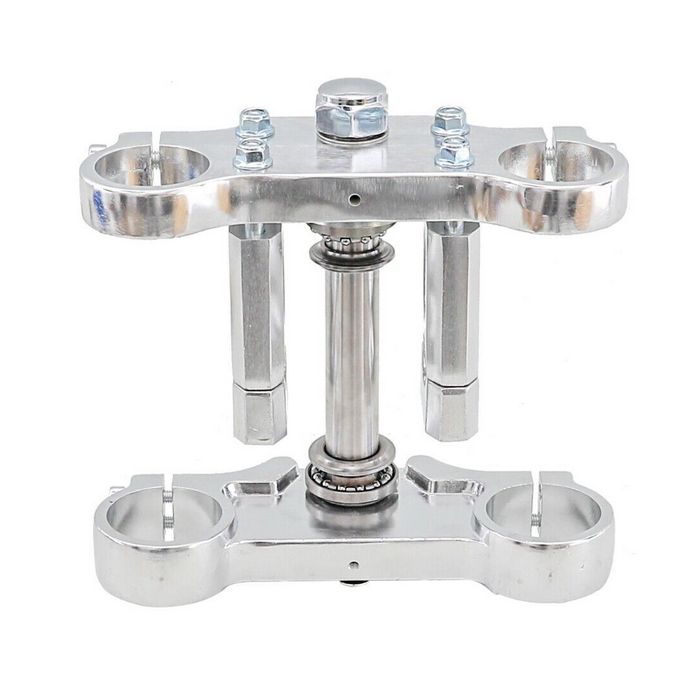

This universal aluminium triple clamp set with integrated bar risers is designed for upside-down (USD) front forks on pit and dirt bikes. It provides secure fork clamping with 45 mm (upper) and 48 mm (lower) bores and accepts standard handlebars, making it suitable for CRF50-style and similar pit bike front ends.
Features
Complete triple clamp set
Integrated handlebar risers
Designed for upside-down (USD) front forks
Aluminium construction
Specifications

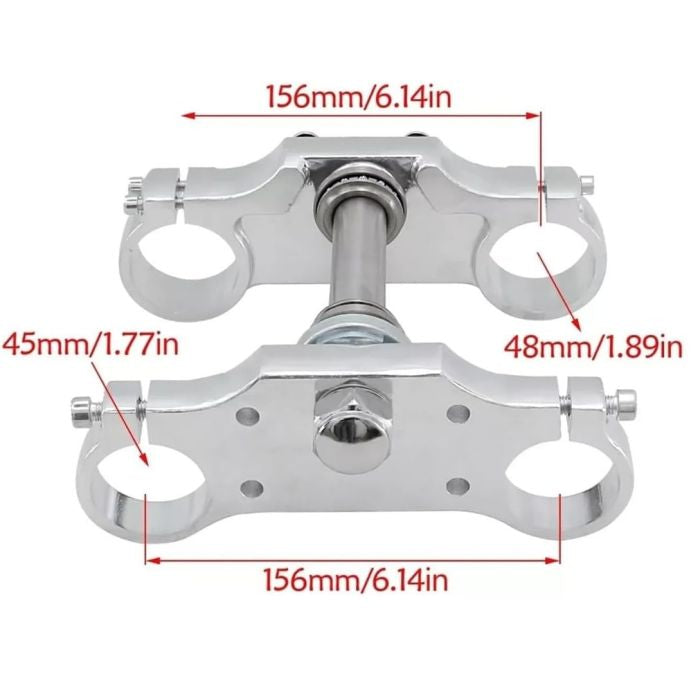

Upper clamp bore diameter: 45 mm
Lower clamp bore diameter: 48 mm
Handlebar clamp diameter: 22 mm (7/8")

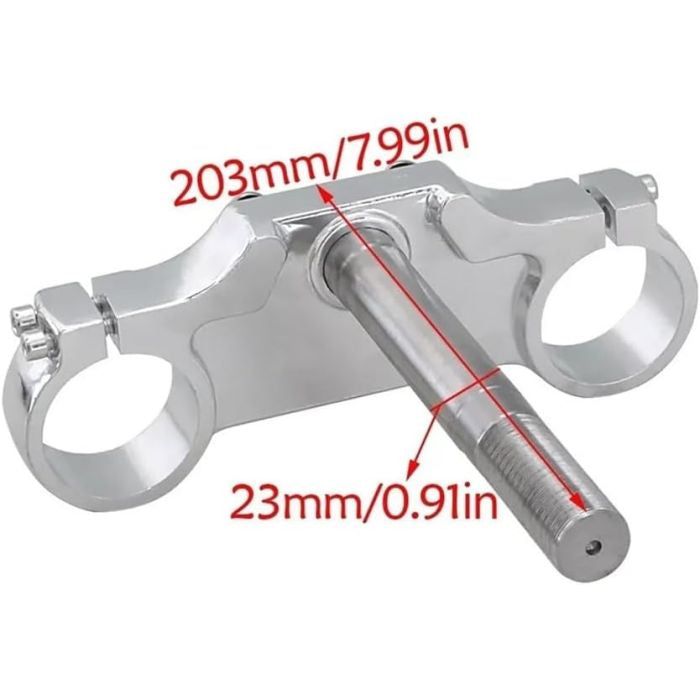

Column (steering stem) length: 203 mm
Bolt-to-bolt distance: 156 mm
Bearing sizes (tapered roller): 320/22 and 320/23
Vehicle Fitments
Universal fit for Chinese pit bikes using 45 mm/48 mm USD forks and 22 mm handlebars
Suitable for small, midsize, and big-wheel pit bike frames
Commonly used on CRF50-style frames and similar models
