PIT BIKE TRIPLE CLAMPS 33MM, 22MM BAR MOUNT

This universal aluminium triple clamp set is designed for upside-down (USD) front forks on pit and dirt bikes. It provides secure fork clamping with 45 mm (upper) and 48 mm (lower) bores, making it suitable for CRF50-style and similar pit bike front ends.

Features

• Complete triple clamp set
• Designed for upside-down (USD) front forks
• Aluminium construction

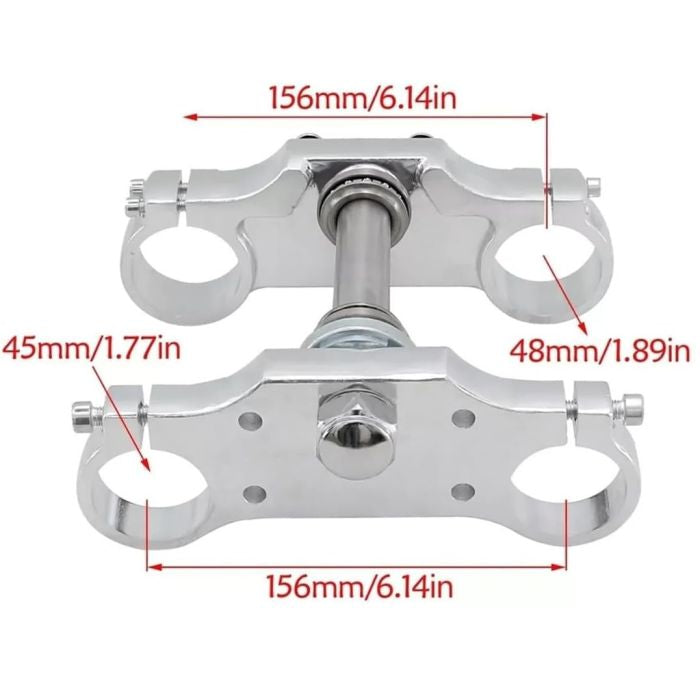

Specifications

• Upper clamp bore diameter: 45 mm
• Lower clamp bore diameter: 48 mm
• Column (steering stem) length: ~~240 mm
• Column (steering stem) width: 22/23mm
• Bolt-to-bolt distance: 156 mm
• Bearing sizes (tapered roller): 320/22 and 320/23

Vehicle Fitments

• Universal fit for Chinese pit bikes using 45 mm/48 mm USD forks
• Suitable for small, midsize, and big-wheel pit bike frames
• Commonly used on CRF50-style frames and similar models

Does not include risers - spacing is roughly 35mm between holes and accepts up to M8 bolts
