Wiseco

Wiseco Piston Pin 18.00 x 60.00 mm OD x length for Honda CR250 M 1973–1977 S343

Wiseco Piston Pin 18.00 x 60.00 mm OD x length for Honda CR250 M 1973–1977 S343

£22.37 GBP
£22.37 GBP
Sale Sold out
Taxes included.

Wiseco S343 is a piston pin with a 18.00 mm outer diameter.

Use with the compatible Wiseco piston or assembly configuration. The application list does not establish compatibility with an original equipment piston.

Wiseco catalogue applications

Make Model Years
Honda CR250 M 1973–1977
Honda MT250, MR250 1975–1977
Honda CR250 R 1978–1980
Husqvarna CR250 1974–1984
Suzuki DS250 1980
Suzuki RL250 1974–1975
Suzuki TM250 1973–1975
Suzuki TS250 1973–1981
Suzuki RM250 1982–1985
Yamaha YZ250 1976–1982
Yamaha IT250 1978–1982
Yamaha DT250 1974–1979
Yamaha MX250 1973–1975
Honda FL250 Odyssey 1977–1984
Honda ATC250 R 1981–1984
Kawasaki ZX9R ZX900B 1994–1997
Kawasaki ZX9R ZX900C 1998–1999

Specifications

  • Manufacturer part number: S343
  • Piston Pin Outer Diameter: 18.00 MM
  • Piston Pin Inner Diameter: 12.00 MM
  • Piston Pin Length: 60.00 MM
  • Piston Pin Retainer Style: Wire Lock
  • Material: 5115

Application notes

  • Honda CR250 R 1978–1980: 2205CMD rings required for standard Chrome Bore.

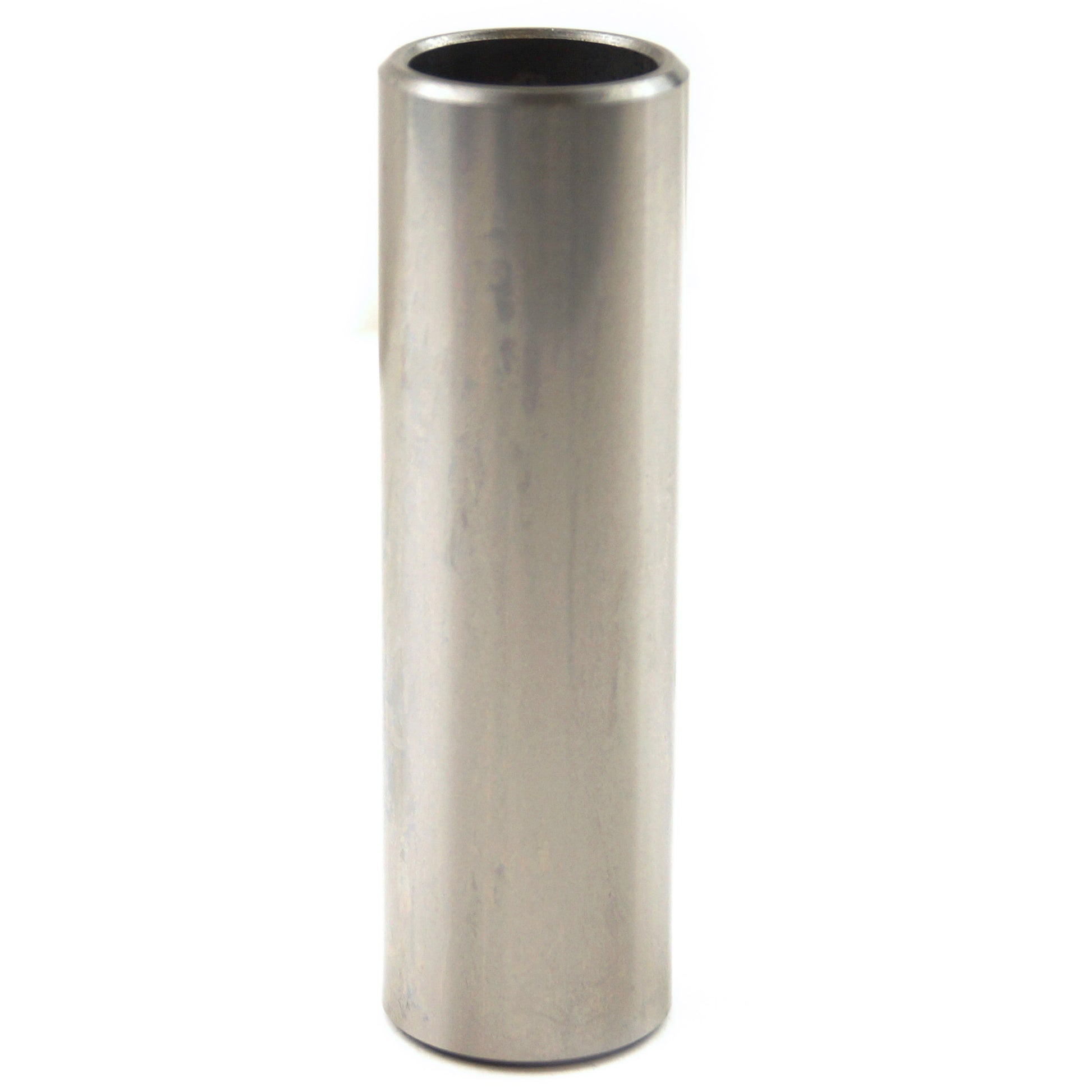

Manufacturer photograph for this reference. Packaging presentation may change.
